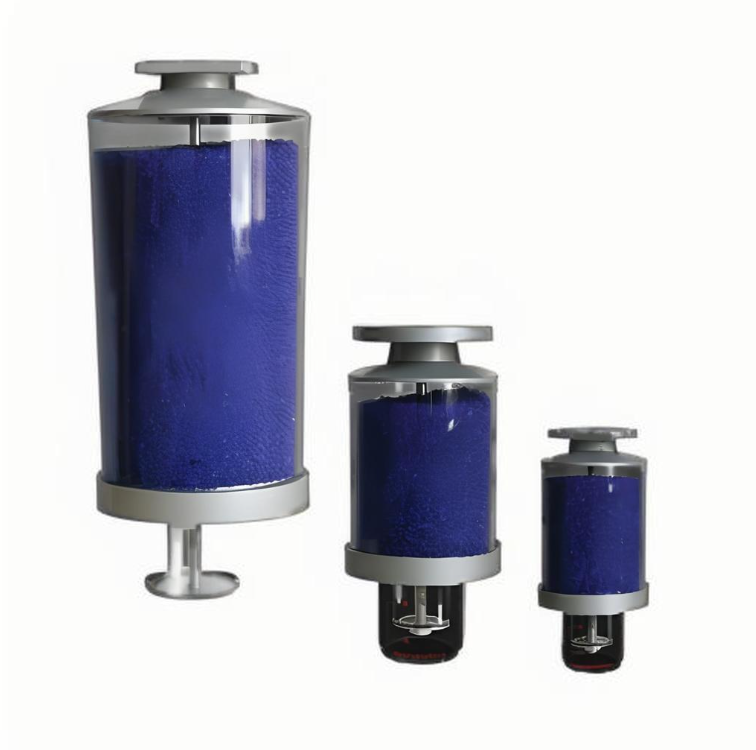

Transformer Breather – Silica Gel Dehumidifier Factory Direct Supply
Professional Moisture Absorber for Oil-Immersed Transformers | Prevent Oil Contamination | Extend Equipment Life
Color-changing silica gel indicator
Extend transformer service life
Fit all transformer types
Wholesale discounts available
3-5 days global shipping
What Is a Transformer Breather and How Does It Work?
A transformer breather, also known as a silica gel dehumidifier or moisture absorber, is a critical protective device installed on the top of the oil conservator tank in oil-immersed transformers. Its primary function is to prevent atmospheric moisture from contaminating the insulating oil during the transformer’s breathing process.
Working Principle of Transformer Breathers
During transformer operation, temperature fluctuations cause the insulating oil to expand and contract. As oil volume changes, air must move in and out of the conservator tank through the breather. The silica gel moisture absorber removes water vapor from incoming air before it contacts the oil, maintaining oil dryness and dielectric strength.
The breathing process works as follows:
When the transformer heats up during operation, oil expands and pushes air out through the breather. As the transformer cools down, the oil contracts and draws atmospheric air back in. Without proper moisture removal, this breathing cycle would introduce water vapor that degrades insulating oil quality, reduces breakdown voltage, and accelerates transformer aging.
The silica gel air dryer contains color-changing silica gel beads that absorb moisture from incoming air. Blue silica gel turns pink when saturated with moisture, providing a clear visual indication that replacement or regeneration is needed.
Core Functions and Benefits
- Protect Insulating Oil: Prevents moisture contamination that causes oil degradation and reduced dielectric strength
- Extend Service Life: Dry oil maintains insulation integrity, significantly extending transformer operational lifespan
- Reduce Maintenance Costs: Prevents moisture-related failures and expensive oil treatment procedures
- Improve Reliability: Maintains consistent electrical insulation performance under varying environmental conditions
Fuzhou Innovation Transformer Breather Technical Advantages
High-Efficiency Silica Gel Moisture Absorption System
Our transformer dehumidifiers utilize premium color-changing silica gel with superior moisture absorption capacity. The blue-to-pink color transition provides unmistakable visual indication of saturation status, eliminating guesswork about replacement timing.
The silica gel can be regenerated through heating at 120-150°C for 2-3 hours, enabling repeated use and reducing long-term operational costs. An oil seal layer at the bottom prevents silica gel dust from falling into the transformer oil system, maintaining oil cleanliness.
Quality Materials and Manufacturing
We manufacture breather bodies using either transparent borosilicate glass or high-grade polycarbonate (PC) plastic, both offering excellent chemical resistance and visual clarity for monitoring silica gel condition. Metal components are fabricated from stainless steel or corrosion-resistant aluminum alloy.
All sealing gaskets utilize oil-resistant, aging-resistant elastomers that maintain integrity over years of service. Each unit undergoes rigorous air-tightness testing to ensure zero leakage under operating conditions.
Comprehensive Size Range
Our product line covers the complete spectrum of transformer applications:
- Small Type: Distribution transformers 10-100kVA
- Medium Type: Power transformers 100-1000kVA
- Large Type: Main transformers above 1000kVA
- Special Type: Instrument transformers, oil switches, compact applications
Easy Installation and Maintenance
Standard flange connections ensure straightforward installation on all common oil conservator configurations. Silica gel replacement requires no special tools and can be completed in minutes. We supply compatible replacement silica gel and provide comprehensive installation and maintenance documentation with every order.
Transformer Breather Technical Specifications
| Model | Transformer Capacity | Silica Gel Weight | Connection Size | Dimensions | Body Material |
|---|---|---|---|---|---|
| QXF-1 | 10-100kVA | 0.5kg | DN20 | Φ100×200mm | Glass/PC |
| QXF-2 | 100-500kVA | 1.0kg | DN25 | Φ120×250mm | Glass/PC |
| QXF-3 | 500-1600kVA | 2.0kg | DN32 | Φ150×300mm | Glass/PC |
| QXF-4 | 1600-5000kVA | 3.0kg | DN40 | Φ180×350mm | Glass/PC |
| QXF-5 | >5000kVA | 5.0kg | DN50 | Φ200×400mm | Glass/PC |
Additional Technical Parameters
- Operating Temperature: -40°C to +60°C
- Pressure Rating: 0.05MPa
- Air-tightness: ≤50Pa/h
- Silica Gel Type: Color-changing indicating silica gel
- Connection Type: Flange or threaded
- Protection Rating: IP54
Transformer Breather Applications and Industries
Power Equipment Applications
Oil-Immersed Transformers: Our transformer moisture absorbers serve distribution transformers (10-35kV), power transformers (110kV and above), and pad-mounted transformer conservators across utility and industrial installations.
Electrical Equipment: Voltage and current instrument transformers, oil-filled high-voltage switches, oil-immersed reactors, and bushing oil systems all require reliable moisture protection provided by our silica gel air dryers.
Industry Sectors
- Power Generation: Generator step-up transformers in thermal, hydro, nuclear, and renewable energy plants
- Substations: Main transformers and distribution transformers in transmission and distribution networks
- Industrial Facilities: Manufacturing plant distribution transformers, process equipment power supplies
- Railway Systems: Traction transformers for electric rail transportation
- Renewable Energy: Wind turbine and solar farm transformer installations
Case Study: 220kV Substation Main Transformer Breathers
Project: Supplied 12 large-capacity breathers (QXF-4 model) for utility substation main transformers. Result: Maintained oil moisture content below 10ppm for 18 months without silica gel replacement, demonstrating superior moisture absorption efficiency and extended service intervals.
Case Study: Distribution Network Transformer Upgrade
Project: Power utility replaced aging breathers on 350 distribution transformers with our QXF-2 model. Result: Reduced moisture-related failures by 85% and extended oil change intervals from 3 to 5 years, delivering substantial maintenance cost savings.
Installation and Maintenance Guidelines
Proper Installation Procedures
- Pre-Installation Inspection: Verify breather integrity and confirm silica gel is blue (dry condition)
- Surface Preparation: Clean conservator tank flange surface and apply appropriate sealant
- Vertical Mounting: Install breather vertically on conservator top, ensuring proper alignment
- Secure Fastening: Tighten flange bolts in cross-pattern to specified torque for uniform seal compression
- Breathing Path Verification: Confirm unobstructed air flow through breather system
Routine Maintenance Requirements
Visual Inspection: Monthly observation of silica gel color status provides early warning of saturation. When pink coloration covers more than 2/3 of the silica gel volume, replacement or regeneration is required.
Replacement Frequency: Typical service intervals range from 3-6 months depending on ambient humidity levels and transformer loading patterns. High-humidity environments or heavily-loaded transformers may require more frequent service.
Silica Gel Regeneration: Saturated silica gel can be regenerated by heating at 120-150°C for 2-3 hours in a suitable oven, then allowing complete cooling before reinstallation. This process can be repeated multiple times, reducing operating costs.
Annual Maintenance: Inspect sealing gaskets annually and replace if deterioration is evident. Verify oil seal level and replenish with clean transformer oil if necessary to maintain proper dust barrier function.
Troubleshooting Common Issues
- Rapid Silica Gel Color Change: Indicates possible air leakage; inspect gasket seal integrity and flange bolt torque
- Silica Gel Dust in Oil: Insufficient oil seal level; add transformer oil to restore proper barrier
- Blocked Air Flow: Clean top cap filter screen; replace silica gel if compacted or contaminated
How to Order Transformer Breathers – Factory Direct Advantages
Product Supply Range
We provide complete transformer breather solutions including assembled units in all standard sizes, replacement silica gel desiccant (blue color-changing type), spare sealing gaskets, and custom specifications for special applications.
Factory Direct Benefits
💰 Wholesale Pricing
Manufacturer direct supply eliminates distributor markups. Volume discounts available for bulk purchases.
📦 Ready Stock
Common models maintained in inventory for immediate availability and fast order fulfillment.
🚚 Quick Delivery
Standard products ship within 3-5 business days. International shipping available worldwide.
✓ Quality Assurance
Rigorous quality inspection with 99.5%+ pass rate. ISO certified manufacturing processes.
🔧 Custom Service
Special dimensions and connection types available. Engineering support for unique applications.
📞 Technical Support
Selection guidance, installation training, and ongoing technical consultation included.
Order Quantities and Pricing
- Small Orders: Minimum 10 units accepted for trial orders
- Bulk Purchase: 100+ units qualify for wholesale pricing tiers
- Long-term Partnership: Annual supply agreements available with preferential terms
Packaging and Shipping
Each unit ships in protective corrugated carton packaging with shock-absorbing materials. Domestic logistics and international courier/freight forwarding services available. All shipments include product certification and comprehensive instruction manuals.
Quality Certifications and Standards
Manufacturing Standards Compliance
Transformer and Reactor Breathers
International Transformer Standard
Quality Management System
European Export Compliance
Related Transformer Accessories
Bulk and packaged options
EPDM/Nitrile diaphragms
Magnetic and dial indicators
Winding and oil thermometers
PRV valves and rupture discs
Portable purification units
Frequently Asked Questions
How often should silica gel be replaced?
Replacement frequency depends on ambient humidity and transformer operation. Typically 3-6 months in normal conditions. Monitor color change – replace when 2/3 of silica gel turns pink. High-humidity environments may require monthly replacement.
Can the transformer operate with pink (saturated) silica gel?
While not immediately dangerous, saturated silica gel loses moisture absorption capability. Continued operation allows atmospheric moisture to enter the oil, gradually degrading insulation quality. Replace or regenerate silica gel promptly when color change is observed.
Can I use regular silica gel instead of color-changing type?
Regular silica gel lacks visual saturation indication, making replacement timing uncertain. Color-changing silica gel provides clear visual feedback, preventing over-extension of service intervals. We strongly recommend using indicating silica gel for reliable moisture protection.
Which is better – glass or polycarbonate body?
Glass offers superior chemical resistance and clarity but is fragile. Polycarbonate (PC) provides impact resistance and lighter weight, ideal for transportation and high-vibration environments. Both materials perform equally well; selection depends on application requirements and handling preferences.
What happens if the breather leaks air?
Air leakage allows unfiltered, moist air to bypass the silica gel and enter the transformer oil directly. This accelerates oil contamination and insulation degradation. Regular seal inspection and proper installation with quality gaskets prevents leakage issues.
How do I select the correct breather size?
Breather size correlates with transformer capacity. Refer to our specification table matching transformer kVA rating to appropriate model. Oversizing is acceptable and provides longer silica gel service life. Contact our technical team for guidance on unusual applications.
Do breathers require periodic cleaning?
The top filter screen should be cleaned annually to ensure unobstructed air flow. The transparent body can be wiped clean externally. Internal cleaning is rarely necessary but may be performed during silica gel replacement if contamination is visible.
Can you provide long-term silica gel supply?
Yes. We maintain continuous inventory of replacement silica gel and offer preferential pricing for long-term supply contracts. Bulk silica gel purchases reduce per-unit costs and ensure consistent availability for maintenance programs.
