The Online SF₆ Gas Dew Point & Density Monitoring System is designed for continuous, real-time monitoring of trace moisture content, dew point temperature, and gas density in SF₆-insulated electrical equipment. It is widely used in GIS, AIS, and SF₆ circuit breakers, providing reliable data support for condition-based maintenance, asset management, and smart grid applications.
By integrating online SF₆ moisture monitoring, gas density measurement, and intelligent data communication, the system enables utilities and industrial users to detect insulation degradation risks at an early stage and ensure safe, stable operation of high-voltage equipment.
SF₆ Gas Trace Moisture Online Monitoring System Overview
SF₆ gas is an ideal insulating and arc-quenching medium due to its excellent electrical and chemical properties. However, excessive trace moisture content and abnormal SF₆ gas density can significantly reduce dielectric strength, accelerate insulation aging, and increase the risk of internal discharge and equipment failure.
The SF₆ Gas Trace Moisture Online Monitoring System continuously measures key gas parameters, including moisture content (ppmv), dew point, gas density, pressure, temperature, and relative humidity. The system supports online operation without gas emission and provides long-term, stable monitoring for SF₆ electrical apparatus.
Online SF₆ Dew Point and Moisture Measurement Principle
The system adopts high-stability trace moisture sensing technology combined with an internal gas circulation sampling method. Water vapor content in SF₆ gas is measured in real time and converted into multiple engineering values, including:
- Trace moisture content (ppmv)
- Dew point temperature (°C)
- Temperature- and pressure-compensated gas density
Built-in intelligent temperature and pressure compensation algorithms effectively eliminate environmental influences, ensuring accurate and repeatable measurement results under varying operating conditions.
Integrated SF₆ Gas Density and Moisture Monitoring Solution
Unlike standalone dew point analyzers or mechanical density gauges, this integrated SF₆ gas density and moisture monitoring solution combines multiple sensing functions into a unified online system. It enables synchronized monitoring, centralized data management, and unified alarm processing for multiple measurement points.
The system is suitable for 110 kV to 750 kV voltage levels and is widely applied in SF₆ circuit breakers, GIS, and AIS installations in substations and power plants.
Key Advantages of Online SF₆ Moisture Density Monitoring System
High-Accuracy SF₆ Trace Moisture and Dew Point Measurement
- Trace moisture measurement accuracy: ±4% FS
- Dew point measurement accuracy: ±2 °C
- Pressure measurement accuracy: ±1% FS
Zero-Emission SF₆ Gas Monitoring Technology
- Internal circulation sampling design
- No SF₆ gas discharge during measurement
- Environmentally friendly, safe, and economical operation
Industrial-Grade Design for Harsh Environments
- Fully sealed, waterproof, and dustproof enclosure
- Strong resistance to electromagnetic interference
- Operating temperature range: -40 °C to +80 °C
Flexible Networking and Remote Monitoring
- Supports RS485 and Ethernet communication
- Modbus protocol supported
- Single system supports up to 64 monitoring points

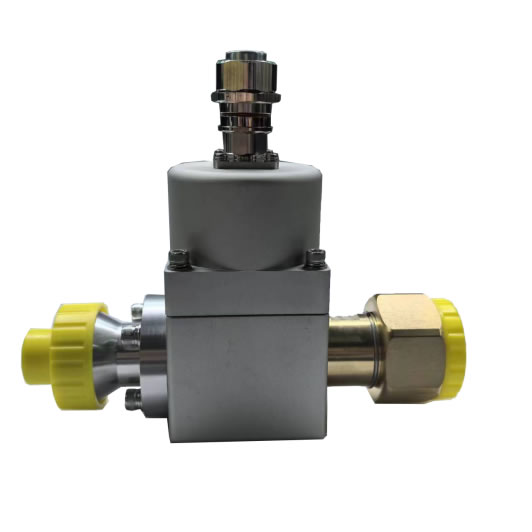

SF₆ Trace Moisture and Density Sensor Unit
The SF₆ trace moisture and density sensor unit is installed directly at the monitoring point of SF₆-insulated equipment. It performs continuous sensing and data transmission of gas parameters under actual operating conditions.
The sensor unit supports online measurement of:
- SF₆ trace moisture content
- Dew point temperature
- Gas pressure and calculated density
- Ambient and gas temperature
- Relative humidity
Multiple valve and interface options are available, making on-site installation, commissioning, and maintenance convenient and efficient.
SF₆ Online Moisture Monitoring Controller and Data Acquisition Unit
The centralized monitoring controller collects data from multiple sensor units and performs real-time analysis, data storage, and alarm processing. It serves as the core of the online SF₆ moisture monitoring system.
- Multi-point data acquisition and centralized management
- Real-time alarm and historical data recording
- Support for fan and auxiliary device linkage control
- Hot-swap capability without interrupting system operation
Applications of SF₆ Gas Moisture Density Monitoring System
- Gas Insulated Switchgear (GIS)
- SF₆ High-Voltage Circuit Breakers
- Air-Insulated and Gas-Insulated Switchgear (AIS / GIS)
- Substation SF₆ gas safety and condition monitoring
Technical Specifications of SF₆ Moisture Density Monitoring System
Trace Moisture and Density Sensor Unit
| Parameter | Specification |
|---|---|
| Temperature Measurement Range | -40 °C to +80 °C |
| Temperature Accuracy | ±0.5 °C |
| Pressure Measurement Range | 0 to 1.00 MPa (abs.) |
| Pressure Accuracy | ±1% FS |
| Dew Point Measurement Range | -50 °C to +20 °C |
| Dew Point Accuracy | ±2 °C |
| Trace Moisture Measurement Range | 10 to 20,000 ppmv |
| Trace Moisture Accuracy | ±4% FS |
| Communication Interface | RS485 |
| Power Supply | DC 12 V |
| Power Consumption | 300 mW |
Online Monitoring Controller
 |
 |
| Parameter | Specification |
|---|---|
| Operating Voltage | AC/DC 220 V ±10% |
| Communication Interface | RS485 / Ethernet |
| Maximum Monitoring Points | Up to 64 points |
| Power Consumption | <10 W |
| Operating Temperature | -25 °C to +70 °C |
SF₆ Trace Moisture Density Monitoring System FAQ
Does the system require SF₆ gas discharge during measurement?
No. The system uses an internal circulation sampling design and does not discharge SF₆ gas during online monitoring, ensuring environmentally friendly and safe operation.
How many monitoring points can be connected to one system?
A single monitoring controller supports up to 64 monitoring points, making it suitable for large-scale GIS installations.
Can the system be integrated with SCADA or third-party platforms?
Yes. The system supports RS485 and Ethernet communication and is compatible with Modbus protocol for easy integration with SCADA and other monitoring platforms.
Is the system suitable for outdoor or harsh environments?
Yes. The sensor unit features a fully sealed, industrial-grade design with excellent resistance to dust, moisture, and electromagnetic interference.
Is customization available?
Yes. Monitoring points, communication methods, system functions, and alarm logic can be customized according to project requirements.
Why Choose Our SF₆ Online Dew Point and Density Monitoring Solution
- In-house R&D and customization capability
- Extensive experience in power and substation monitoring applications
- Designed to meet smart grid and condition-based maintenance requirements
- Long-term technical support and system upgrade services
Get Technical Support and Quotation
For detailed technical solutions, product selection assistance, or pricing information, please contact our engineering team. We provide customized SF₆ gas moisture and density online monitoring solutions tailored to your application requirements.
Contact us today to request a quotation or technical consultation.
Customer Reviews
★★★★☆ (4.7 out of 5 based on 23 reviews)
★★★★★
Stable long-term SF6 dew point monitoring in GIS installations. The system provides reliable moisture and density data and integrates smoothly with RS485 communication.
— Substation EPC Contractor, Germany
★★★★☆
Accurate measurement of trace moisture and gas density for SF6 circuit breakers. Installation and commissioning are straightforward.
— Power Utility Maintenance Team, Southeast Asia
★★★★★
Reliable online SF6 moisture monitoring system for continuous operation. Suitable for harsh substation environments.
— Electrical Engineering Company, Middle East
Disclaimer
All specifications and descriptions on this page are for reference only. Actual product configuration, performance, and appearance are subject to the final delivered product and technical agreement. The manufacturer reserves the right to modify product specifications without prior notice.
