Professional fiber optic temperature sensor manufacturer and fiber optic temperature monitoring system factory — proven solutions for transformer winding, switchgear busbar, high-voltage motors, MRI and harsh industrial environments. 100kV+ insulation, EMI-immune, 25-year maintenance-free operation.
Our fluorescent fiber optic temperature sensors and optical fiber temperature probes are trusted across power utilities, industrial OEMs, medical imaging and semiconductor manufacturing worldwide.
Direct transformer hotspot monitoring inside oil-immersed and dry-type transformers with fibre optic transformer winding temperature probes, aligned with IEEE C57.91 & IEC 60076 loading guidelines.
Explore Transformer Monitoring →Real-time switchgear busbar temperature sensor, bolt and contact monitoring in medium/high-voltage gis temperature monitoring system applications with full EMI immunity.
Explore Switchgear Solution →Electric motor temperature monitoring, hydro generator temperature sensor and wind turbine temperature sensor solutions where PT100 fails under strong electromagnetic fields.
Explore Motor Sensor →Fully non-metallic fiber optic temperature sensor for MRI, NMR, laser ablation, HIFU and thermal therapy — immune to strong magnetic and RF fields.
Explore Medical Sensor →Fiber optic thermal sensor probes for cell, module and busbar monitoring — no short-circuit risk, fast response for early thermal anomaly detection.
Explore Monitoring System →Microwave fiber optic temperature sensors and industrial furnace temperature sensor probes for microwave drying, RF curing, induction heating and plasma processing — zero interference with process fields.
Explore High-Temp Sensor →Permanent circuit breaker temperature monitoring of critical current-carrying joints where overheating leads to switchgear failure.
Explore Busbar Sensor →High-density, low-cost-per-point fiber optic temperature monitoring for data centers, UPS rooms and mission-critical electrical assets.
Explore Monitoring System →Fluoroptic temperature measurement uses the temperature-dependent fluorescence decay of a phosphor crystal at the fiber tip — pure optical, immune to electricity and magnetic fields.
A pulsed LED excites the phosphor at the optical fiber temperature probe tip. No electrical signal travels down the fiber.
Decay time of the emitted fluorescence is strictly temperature-dependent — the foundation of fluoroptic temperature sensor technology.
Our fiber optic temperature transmitter measures decay time and converts it to temperature with ±0.5°C accuracy.
Values are streamed via RS485 Modbus RTU to SCADA/DCS — complete optical fiber temperature sensing system.
Because the signal is purely optical — no copper conductor, no metal housing around the sensing element. This makes our fiber optic thermometer ideal for transformers, MRI scanners, microwave cavities and any high-voltage or high-RF environment where traditional optical temperature sensors with metallic parts cannot be used.
From sensor selection to SCADA integration — engineered by our application team, delivered as a complete fiber optic temperature measurement system.

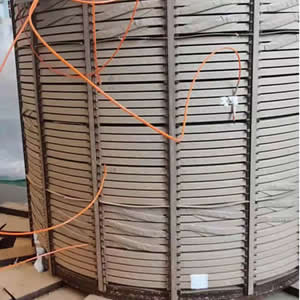

Direct transformer winding monitoring — the foundation of dynamic loading and predictive maintenance with fluorescent fibre optic transformer winding temperature probes.
View Solution Details →Conventional transformer temperature gauge or PT100 sensors can't survive inside windings. Top-oil gauges only reflect indirect readings — the real hot spot may be 10–15°C higher, accelerating insulation aging.
Armored fluorescence probes embedded between windings during manufacturing or retrofitted via oil valve. Multi-point transformer thermal monitoring integrated with SCADA/DCS via RS485 Modbus RTU.

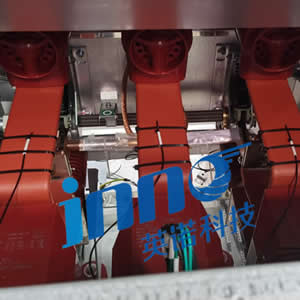

Permanent, battery-free fiber optic temperature measurement system for switchgear at the highest-risk points — bolted joints and contact surfaces.
View Solution Details →Overheating at busbar joints is the #1 cause of switchgear failures. Wireless sensors suffer from battery life and RF issues; infrared has blind spots and requires inspection windows.
Fully dielectric fluorescence probes installed directly on contact points and busbars for continuous switchgear monitoring with configurable alarm thresholds — safe for live installation.

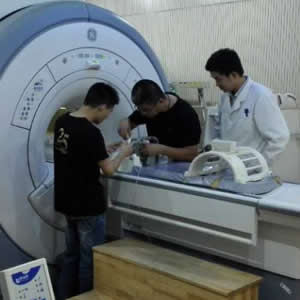

For environments where traditional sensors fail — strong magnetic fields, RF, microwave heating and medical imaging including MRI fiber optic temperature sensor applications.
View Solution Details →Metallic sensors distort MRI images, heat up in RF fields, and introduce safety risks in microwave chambers. Legacy monitoring often leaves the process blind.
Fully non-metallic, all-dielectric fluorescent fiber optic temperature sensor probes — immune to EMI, RF, microwave and magnetic fields. Custom tip geometries for medical, semiconductor and food processing use cases.
Browse our core optical fiber temperature probe, fiber optic temperature transmitter and complete monitoring system families — every item is customizable in range, length, diameter, connector and housing.
All parameters are customizable — contact our fiber optic temperature sensor factory to tailor a configuration for your application.
| Measurement Range | -40°C to +260°C (customizable) |
|---|---|
| Accuracy | ±0.5°C to ±1°C |
| Response Time | < 1 second |
| Fiber Length | 0–20 m (customizable) |
| Probe Diameter | 2–3 mm (customizable) |
| Insulation Voltage | ≥ 100 kV |
| Service Life | > 25 years |
| Channels per Transmitter | 1 / 4 / 8 / 16 / 32 channels |
| Communication Interface | RS485 (Modbus RTU) |
| Customization Options | Range, length, diameter, connector, housing — all customizable |
Deployed in 30+ countries as a trusted fiber optic temperature sensor supplier to utilities, OEMs and EPC contractors worldwide.
We help you design the right monitoring configuration — not just sell you a sensor.
Full vertical integration from fluorescent material to transmitter for quality and lead-time control.
Fiber optic temperature sensor OEM supplier in China — private label, custom branding, NDA-backed partnerships.
Dramatically lower total cost of ownership — no recalibration, no battery, no drift.
Quote response within 24 hours. Dedicated account manager for every key project.
From fiber optic temperature module OEM development to fiber optic temperature sensor wholesale — we serve distributors, system integrators and OEM equipment builders.
Your brand, your packaging. We manufacture fluorescent fiber optic temperature sensors to your spec and ship ready-to-sell.
Fiber optic temperature module OEM development — custom firmware, mechanical design and protocol integration for your product.
Competitive optical fiber temperature probe price for distributors and resellers — tiered pricing, stock support and marketing materials.
Experienced China fiber optic temperature sensor export team — DHL, FedEx, air and sea freight to 30+ countries.
Real-world deployments of our fluorescence fiber optic temperature monitoring system across power, industrial and medical sectors.
480 monitoring points across 15 substations. Zero sensor failures after 3 years. Unplanned maintenance reduced by 40%.
120 transformers retrofitted with fiber optic winding monitoring, integrated into existing SCADA via RS485.
Cell-level fiber optic temperature monitoring for a next-generation EV platform — custom probe form factor.
Common product, pricing, customization and delivery questions from our buyers.
Whether you are sourcing a transformer temperature monitoring system, a switchgear temperature monitoring system or a custom optical fiber temperature sensing system — our engineering team will help you specify the right configuration. Quote response within 24 hours.
