Why It Matters

Why High-Voltage Power Cables Need Continuous Online Condition Monitoring

Power cables form the backbone of modern electrical grids, yet they operate under persistent thermal, electrical, and mechanical stress. Early fault detection through online monitoring is the only reliable strategy for preventing unplanned outages and costly failures.

🔥

Thermal Degradation at Joints & Terminations

Cable joints and terminations concentrate heat. XLPE insulation degrades exponentially with temperature above the rated limit. Without continuous thermal monitoring, internal overheating at splices goes undetected until insulation failure occurs.

⚡

Partial Discharge Leads to Insulation Breakdown

Tiny insulation voids, contaminants, and interface defects produce partial discharge activity long before catastrophic failure. PD monitoring detects these electrical signatures weeks or months in advance, enabling planned maintenance.

🌡️

Overloading & Dynamic Rating

Traditional static ampacity ratings leave unused capacity during cool periods and risk overloading during peak demand. Real-time temperature data along the full cable route enables dynamic cable rating — safely increasing load capacity when conditions allow.

🔌

Sheath Grounding Faults Are Silent Killers

Damaged sheath insulation causes elevated circulating currents in the cable sheath. Left undetected, this accelerates aging of the main insulation and can progress to complete cable failure. Sheath current monitoring catches this early.

🏙️

High Cost of Urban Cable Replacement

Replacing underground urban cables involves civil works, traffic disruption, and extended outages. Predictive monitoring extends cable service life by enabling targeted maintenance — deferring costly replacement by years.

📊

Regulatory & Grid Reliability Requirements

Transmission system operators and utilities face increasing regulatory requirements for asset condition monitoring and outage reporting. Online cable monitoring provides the continuous data record required for compliance and grid reliability demonstration.

Fiber Optic & Electronic Cable Monitoring Products

INNO manufactures all key components of the cable monitoring system in-house — from individual fiber optic probes to complete integrated monitoring instruments and sensing cables.

🌡️ Fluorescent Fiber Optic Temperature Sensing — Point Measurement FOR JOINTS & TERMINATIONS

Sensor Probe

Fluorescent Fiber Optic Temperature Sensor Probes

Rare-earth phosphorescence decay probes for high-precision point temperature measurement at cable joints, terminations, and sealing ends. ±0.5°C accuracy, EMI-immune, calibration-free 25+ year service life. Fiber length 0–20 m.

Measurement Instrument

Fiber Optic Temperature Measurement Display Integrated Host

All-in-one fluorescent fiber optic measurement and display host. Integrated touch-screen display, multi-channel acquisition, RS485 Modbus RTU output. Designed for panel mounting in substation control rooms or cable tunnel monitoring cabinets. Supports up to 32 temperature channels.

6-channel fiber optic temperature monitoring device for cable joint hotspot measurement

Multi-Channel Instrument

Fiber Optic Temperature Monitoring Device — 6 Channels

Compact 6-channel fluorescent fiber optic temperature monitor with DIN rail mounting. Simultaneously monitors 6 cable joint or termination points from one instrument. RS485 communication, configurable alarm thresholds, and relay output for SCADA integration.

📡 Distributed Fiber Optic (DTS) — Long-Distance Route Monitoring FOR FULL CABLE ROUTES

Distributed fiber optic temperature measurement system (DTS) for underground power cable route monitoring

DTS System

Distributed Fiber Optic Temperature Measurement System for Cables

Complete DTS monitoring system for underground and submarine power cable routes. Raman backscattering technology delivers continuous temperature profile at 1-meter spatial resolution over distances up to 50 km per channel. Supports dynamic cable rating (DCR) and full SCADA integration.

Armored distributed temperature sensing optical cable for underground power cable DTS monitoring

DTS Sensing Cable

Distributed Fiber Optic Armored Temperature Sensing Cable

Steel armored temperature sensing optical cable designed for direct burial or duct installation alongside power cables. Operating range -40°C to +120°C. Metal spiral armor provides mechanical protection in harsh trench and tunnel environments.

Distributed fiber optic cable vibration and perimeter security monitoring system for power cable routes

DAS / Vibration Sensing

Distributed Fiber Optic Cable Vibration & Perimeter Security Monitoring System

Distributed Acoustic Sensing (DAS) system for cable route security and vibration monitoring. Detects third-party interference, digging activity, and mechanical disturbance along the full cable route using the same fiber as DTS.

⚡ Partial Discharge & Sheath Current Monitoring Instruments ELECTRICAL MONITORING

PD Monitoring

Cable Partial Discharge Online Monitoring System

Real-time partial discharge monitoring for MV and HV power cables. High-frequency current sensors (100 kHz–50 MHz), 5 pC detection sensitivity, 3D PRPD pattern analysis, and TDR fault location. 3–8 simultaneous monitoring channels. Detects insulation defects weeks before cable failure.

Sheath Current

Cable Sheath Circulating Current Online Monitoring System

Continuous sheath grounding current measurement for 10 kV and above single-core HV cables. Optical isolation, adaptive filtering, ±1% accuracy, -20°C to +85°C operating range. Detects sheath insulation faults, cross-bonding errors, and grounding anomalies with RS485 Modbus RTU SCADA integration.

INNO Technical Advantages

Why Choose INNO Fiber Optic Cable Monitoring Technology

Vertically integrated manufacturer of fiber optic sensors, monitoring instruments, and software since 2011 — delivering complete cable monitoring systems from one factory.

🛡️

Full EMI Immunity via Fiber Optic Sensing

Fiber optic sensors carry no electrical current. They are completely immune to the strong electromagnetic fields surrounding high-voltage cables — providing stable, accurate readings where conventional electronic sensors fail.

🔬

Fluorescent Technology for Joint Precision

Fluorescent (phosphorescence decay) fiber optic probes deliver ±0.5°C point accuracy at cable joints and terminations — far exceeding thermocouple or RTD performance in high-EMI environments. Fiber length range: 0–20 m.

📡

DTS for Complete Long-Distance Route Coverage

Distributed Temperature Sensing (DTS) using Raman backscattering produces a continuous temperature profile every 1 meter along cable routes up to 50+ km — detecting unexpected hotspots anywhere along the route.

🔧

Non-Intrusive Retrofit — No Service Interruption

All sensor types are designed for installation on energized cables. Clamp-on sheath current sensors, surface-mount fiber probes, and duct-laid DTS cables integrate seamlessly with existing infrastructure without disrupting live circuits.

🌐

SCADA Integration: IEC 61850 & Modbus RTU

Standard RS485 Modbus RTU output with optional IEC 61850 for digital substation environments. Compatible with all major SCADA platforms — no proprietary middleware or license fees.

ISO 9001 ISO 14001 ISO 45001 CE Marked RoHS OEM / ODM

System Architecture

How the Cable Monitoring Platform Works

INNO cable monitoring integrates multiple sensor layers into a unified data acquisition and software platform. Each monitoring parameter is handled by its dedicated sensor technology optimized for that failure mode:

✓ Fluorescent fiber optic probes → Joint & termination temperature
✓ DTS armored sensing cable → Full-route temperature profile
✓ High-frequency current sensors → Partial discharge detection
✓ Clamp-on current transformers → Sheath circulating current
✓ Central data acquisition unit → All parameters in one platform
✓ SCADA / cloud software → Alarm management & trend analytics

APPLICATIONS

110 kV Cable 220 kV Cable 330 kV Cable 500 kV Cable MV 10 kV+ XLPE Insulated Oil-Paper Cable Submarine Cable Cable Tunnels

Monitoring Sub-Systems

Complete Power Cable Condition Monitoring: Four Critical Parameters

Each monitoring dimension targets a distinct failure mechanism. Together they form a complete cable health assessment system covering thermal, electrical, and grounding integrity.

01 / Temperature Monitoring

Cable Temperature Monitoring System

Real-time thermal monitoring of cable joints, terminations, and the full cable route. Uses fluorescent fiber optic sensors (0–20 m fiber, ±0.5°C accuracy) at discrete high-risk points and DTS distributed sensing along the entire cable length. Enables dynamic cable rating (DCR) — safely maximizing cable ampacity based on actual thermal conditions.

Fluorescent FO DTS Long-Distance Dynamic Rating ±0.5°C Accuracy

→ Explore Cable Temperature Monitoring

02 / Partial Discharge Monitoring

Cable Partial Discharge Online Monitoring

High-frequency current sensors (100 kHz–50 MHz) capture partial discharge pulses from insulation voids, interface defects, and contamination in XLPE cable insulation. Real-time 3D PRPD pattern analysis classifies discharge type and severity. Time-domain reflectometry precisely locates the fault position along the cable route.

HFCT Sensors 3D PRPD Analysis Fault Location (TDR) 5 pC Sensitivity

→ Explore Partial Discharge Monitoring

03 / Hotspot Monitoring

Cable Joint & Termination Hotspot Detection

Localized thermal hotspots at cable joints, splices, and transition zones represent the highest-risk failure points. Fluorescent fiber optic point sensors deliver ±0.5°C accuracy at each monitored joint — providing high-precision early warning of connection deterioration, insulation damage, or installation defects.

Point Measurement Fluorescent FO Probe EMI Immune Joint / Termination

→ Explore Hotspot Detection

04 / Sheath Current Monitoring

Cable Sheath Circulating Current Monitoring

In single-core HV cable systems with single-point bonding, sheath currents reveal grounding integrity and sheath insulation health. Elevated or asymmetric sheath currents indicate cross-bonding faults, sheath insulation breakdown, or grounding system anomalies. Clamp-on optical current sensors with ±1% accuracy cover -20°C to +85°C continuously.

Optical Isolation ±1% Accuracy Multi-Channel Grounding Health

→ Explore Sheath Current Monitoring

Technology Deep-Dive

Fiber Optic Cable Temperature Monitoring: Fluorescent Sensors vs. Distributed DTS

INNO deploys two complementary fiber optic temperature sensing technologies. Understanding their differences is key to designing the right cable monitoring system.

FOR CABLE JOINTS & TERMINATIONS

Fluorescent Fiber Optic Sensors — Point Precision

Fluorescent fiber optic sensors work by measuring the phosphorescence decay time of a rare-earth crystal at the probe tip. Temperature is derived from decay time — a fundamental physical property that does not drift over time and requires no recalibration.

This technology is ideal for discrete, high-priority measurement points: cable joints, splices, cable terminations, GIS cable sealing ends, and transition joints between underground and overhead sections.

Measurement principle: phosphorescence decay time — calibration-free for 25+ years
Accuracy: ±0.5°C to ±1°C at each probe point
Fiber length: 0–20 m per probe
Response time: <1 second for real-time alarm triggering
Channels: 1 to 32 points per instrument
Immunity: 100% EMI-immune — fiber carries no current
Installation: surface-mount probe on joint body
Probe life: 25+ years, maintenance-free

FOR LONG UNDERGROUND & SUBMARINE ROUTES

Distributed Fiber Optic DTS — Route-Wide Visibility

Distributed Temperature Sensing (DTS) uses spontaneous Raman backscattering in a standard sensing optical fiber. When laser pulses travel down the fiber, backscattered light at each position carries temperature information. The result is a continuous temperature profile along the entire cable route.

DTS is the standard technology for monitoring underground cable tunnels, duct-bank routes, and submarine cable systems where the thermal environment along the full route must be tracked continuously.

Sensing range: up to 50 km per DTS channel
Spatial resolution: 1 meter (detects hotspots over any 1 m section)
Temperature accuracy: ±1°C along the full length
Sensing cable: armored standard telecom fiber — laid in cable duct or trench
Dynamic cable rating (DCR): real-time ampacity optimization
Applications: cable tunnels, duct banks, river crossings, offshore routes
No active electronics along the route — fully passive sensing cable

Parameter	Fluorescent Fiber Optic (Point)	Distributed DTS (Route)
Primary Application	Cable joints, terminations, sealing ends	Full underground/submarine route
Measurement Type	Discrete point measurements	Continuous spatial profile (every 1 m)
Temperature Accuracy	±0.5°C per point	±1°C along full length
Fiber / Sensing Length	0–20 m per probe	Up to 50 km per channel
Response Time	<1 second	10–60 seconds (configurable)
Sensing Principle	Phosphorescence decay time	Raman backscattering (OTDR)
Enables Dynamic Rating	At monitored joints only	Full-route DCR — identifies limiting section
Best Combined With	DTS (for route coverage)	Fluorescent probes (for joint precision)

OEM & Factory-Direct Partnership

OEM Cable Monitoring Partner — Factory Direct

INNO is a vertically integrated manufacturer of power cable monitoring systems — covering fiber optic temperature sensing, distributed DTS, partial discharge detection, and sheath current measurement. We supply OEM partners worldwide with factory-direct hardware, white-label software, and dedicated application engineering support. No distributors. No markup. Direct from the production line to your project.

🏭

Vertically Integrated Manufacturing

Sensor fabrication, instrument assembly, software development, and quality testing all performed in-house at our Fuzhou facility — giving OEM partners full traceability and supply chain control.

🏷️

White-Label Hardware & Software

Complete rebranding of monitoring instruments, probe assemblies, and cloud-based analytics dashboards under your brand identity. Custom color schemes, UI, and documentation packages included.

⚙️

Custom Sensor Form Factors & Protocols

Custom fiber optic probe geometries, non-standard connector types, proprietary communication stacks, and bespoke enclosure designs — all supported with full engineering collaboration.

📋

Full IQ/OQ Documentation & Certifications

CE, RoHS, ISO 9001, ISO 14001, ISO 45001 certified production with full IQ/OQ qualification packs, calibration certificates, and production traceability records for every shipment.

🌍

50+ Countries — Active OEM Partners

Current OEM partners include cable manufacturers, EPC contractors, system integrators, and utility equipment suppliers across Europe, Asia Pacific, the Middle East, and the Americas.

Discuss OEM Partnership → 📧 Email Our OEM Team

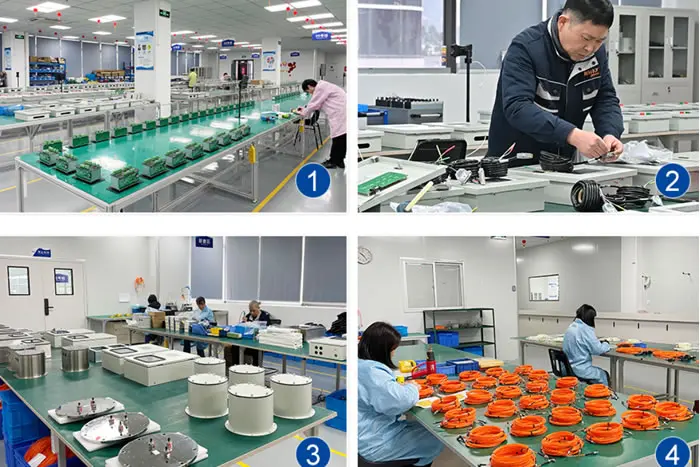

INNO factory-direct OEM power cable monitoring system — DTS distributed fiber optic temperature measurement for underground cable routes

Quality & Certifications

Internationally Certified Manufacturing — Quality You Can Verify

Every INNO cable monitoring product is manufactured under a certified quality management system and backed by internationally recognized product certifications. Full documentation is provided with every order.

ISO 9001:2015

Quality Management System — covering design, manufacturing, testing, and delivery of all monitoring products.

ISO 14001:2015

Environmental Management System — committed to responsible manufacturing with minimal environmental impact.

ISO 45001:2018

Occupational Health & Safety Management — protecting our workforce and our customers' project teams.

CE Marking

EU market conformity certification — all applicable EMC, LVD, and machinery directives met for European installations.

RoHS Compliance Certificate — INNO Fiber Optic Monitoring

RoHS Compliant

Restriction of Hazardous Substances compliance — all products free of restricted materials for global deployment.

📄 Full calibration certificates, test reports, factory acceptance test (FAT) records, and IQ/OQ qualification documentation are provided with every shipment. OEM partners receive additional production traceability records on request.

Customer Feedback

What Engineers & Project Managers Say About INNO Cable Monitoring

Feedback from engineers, procurement managers, and project leads across power utilities, EPC contractors, and industrial operators who have deployed INNO cable monitoring systems.

★★★★★

The fluorescent fiber optic probes installed at our 220 kV cable joint boxes have been running for over two years without a single calibration drift event. The ±0.5°C accuracy is consistent with our commissioning measurements. Integration with our Modbus SCADA was straightforward — the technical documentation was thorough and the INNO engineering team responded within hours to any question during commissioning.

Senior Protection & Control Engineer

Transmission System Operator

Northern Europe

★★★★★

We evaluated three DTS suppliers for our underground cable tunnel project. INNO offered the best combination of spatial resolution, sensing cable mechanical specification, and price. The armored sensing cable held up perfectly through the installation pull-through process. Six months in, the system has already identified two sections of the cable route running warmer than expected — giving us data to adjust load scheduling before any thermal limits were approached.

Power Systems Project Manager

Municipal Infrastructure Developer

Southeast Asia

★★★★★

As an OEM integrator, working with INNO has simplified our supply chain significantly. The white-label documentation, co-branded enclosures, and IQ/OQ packages they provide reduce our certification workload substantially. Their factory's production traceability records give our utility clients the documentation assurance they require. Lead times are consistent and the pre-shipment test reports have always matched performance in the field.

Procurement & Technical Director

Power Equipment Integrator

Middle East

Application Scope

Power Cable Monitoring Applications Across All Infrastructure Types

INNO cable monitoring systems are designed and proven across the full spectrum of high-voltage cable applications — from urban transmission cables to offshore submarine links.

🏙️

Urban Underground Transmission Cables

110 kV–500 kV XLPE cables in city duct banks and cable tunnels — fiber DTS monitoring with dynamic rating to maximize grid capacity.

🌊

Submarine & River Crossing Cables

Armored DTS sensing cable laid alongside submarine power cables — continuous thermal monitoring of inaccessible routes where inspection is impossible.

🏭

Industrial Plant HV Cable Networks

Petrochemical, steel, and process plant MV/HV cables — PD and sheath current monitoring to protect process-critical power infrastructure.

🔌

Substation Outlet & Feeder Cables

Joint and termination hotspot monitoring for cable circuits leaving substations — the highest-risk connection points in any cable system.

💨

Wind Farm & Renewable Energy Cable Collectors

Offshore wind farm array cables and onshore collector cable systems — DTS and sheath current monitoring for remote, unmanned installations with SCADA integration.

🖥️

Data Center Primary MV Feeder Cables

Mission-critical MV cable feeds to data centers — PD and temperature monitoring to prevent unplanned outages in Tier III/IV facilities.

Expert Q&A

Power Cable Monitoring System — Frequently Asked Questions

Technical questions answered by INNO engineers — covering fiber optic temperature sensing principles, DTS vs fluorescent technology, partial discharge detection, and system integration.

What is a power cable online monitoring system and how does it work? +

A power cable online monitoring system continuously measures key parameters — temperature, partial discharge activity, sheath circulating current, and thermal hotspots — along energized high-voltage cables without interrupting service. It uses fiber optic sensors (immune to EMI) and electronic sensors to detect early signs of insulation degradation, overheating, or grounding faults, enabling condition-based maintenance before failures occur. Data is transmitted in real time to SCADA platforms for alarm management and historical trend analysis.

What is the difference between fluorescent fiber optic sensors and DTS for cable temperature monitoring? +

Fluorescent fiber optic sensors use the phosphorescence decay time of a rare-earth probe to measure temperature at discrete points with ±0.5–1°C accuracy, with fiber lengths from 0 to 20 m. They are ideal for cable joints and terminations where precise point measurement is critical. Distributed Temperature Sensing (DTS) uses Raman backscattering along a standard sensing cable to produce a continuous temperature profile over tens of kilometers — making it the standard for long underground or submarine cable routes. Both technologies are complementary and are often deployed together.

What does cable partial discharge monitoring detect — and why is early detection critical? +

Cable partial discharge (PD) monitoring detects small electrical discharges inside insulation voids, at interfaces, or in degraded XLPE insulation. High-frequency current sensors (100 kHz–50 MHz) capture PD pulse patterns in real time. 3D PRPD pattern analysis identifies discharge type, severity and — using time-domain reflectometry — locates the fault position along the cable to within meters. Early detection is critical because PD activity progressively erodes insulation, eventually leading to complete breakdown and potentially catastrophic failure.

Why is cable sheath circulating current monitoring important for HV cable systems? +

In single-core high-voltage cables with single-point bonding, sheath currents should be near zero. Elevated circulating currents indicate sheath insulation breakdown, cross-bonding errors, or grounding faults. Left undetected, this accelerates aging of the main insulation and can progress to complete cable failure. Continuous sheath current monitoring with optical current sensors detects these anomalies early, before they damage the primary XLPE insulation.

How is cable hotspot monitoring different from full-route DTS temperature monitoring? +

DTS gives a full longitudinal temperature profile with typical spatial resolution of 1 meter — it covers the entire route and detects unexpected thermal anomalies anywhere. Hotspot monitoring using fluorescent fiber optic point sensors (0–20 m fiber length) targets known high-risk locations specifically — joints, splices, duct transitions — delivering sub-meter point accuracy at ±0.5°C with response times under one second. The two technologies are complementary: DTS finds unexpected hotspots along the route; point sensors provide high-precision vigilance at the most vulnerable positions.

Can INNO cable monitoring systems integrate with existing SCADA platforms? +

Yes. All INNO cable monitoring systems communicate via RS485 Modbus RTU as standard, with IEC 61850 available for digital substation environments. Systems are compatible with Siemens WinCC, ABB System 800xA, Schneider EcoStruxure, GE iFIX, and other major SCADA platforms without proprietary middleware. Real-time alarm relays, trend data, and complete event logs are delivered to the upstream SCADA platform in standard protocol format.

What voltage levels are covered by INNO power cable monitoring solutions? +

INNO cable monitoring solutions cover medium-voltage (10 kV and above) through ultra-high-voltage (500 kV and above) cable systems. Both XLPE and oil-paper insulated cables are supported. Applications include 110 kV, 220 kV, 330 kV, and 500 kV underground transmission cables as well as MV distribution cable circuits.

Does INNO provide OEM and custom manufacturing for cable monitoring systems? +

Yes. INNO is a vertically integrated OEM and ODM manufacturer offering custom sensor form factors, white-label monitoring software, custom communication protocol stacks, and full IQ/OQ qualification documentation. We support cable manufacturers, EPC contractors, and utility equipment integrators globally — with production traceability records, co-branding options, and dedicated application engineering support. Please contact web@fjinno.net to discuss your specific OEM requirements.

Power Cable Online Monitoring System: Fiber Optic Temperature, PD & Sheath Current

Why High-Voltage Power Cables Need Continuous Online Condition Monitoring

Thermal Degradation at Joints & Terminations

Partial Discharge Leads to Insulation Breakdown

Overloading & Dynamic Rating

Sheath Grounding Faults Are Silent Killers

High Cost of Urban Cable Replacement

Regulatory & Grid Reliability Requirements

Fiber Optic & Electronic Cable Monitoring Products

Why Choose INNO Fiber Optic Cable Monitoring Technology

Full EMI Immunity via Fiber Optic Sensing

Fluorescent Technology for Joint Precision

DTS for Complete Long-Distance Route Coverage

Non-Intrusive Retrofit — No Service Interruption

SCADA Integration: IEC 61850 & Modbus RTU

How the Cable Monitoring Platform Works

Complete Power Cable Condition Monitoring: Four Critical Parameters

Cable Temperature Monitoring System

Cable Partial Discharge Online Monitoring

Cable Joint & Termination Hotspot Detection

Cable Sheath Circulating Current Monitoring

Fiber Optic Cable Temperature Monitoring: Fluorescent Sensors vs. Distributed DTS

Fluorescent Fiber Optic Sensors — Point Precision

Distributed Fiber Optic DTS — Route-Wide Visibility

OEM Cable Monitoring Partner — Factory Direct

Vertically Integrated Manufacturing

White-Label Hardware & Software

Custom Sensor Form Factors & Protocols

Full IQ/OQ Documentation & Certifications

50+ Countries — Active OEM Partners

Internationally Certified Manufacturing — Quality You Can Verify

ISO 9001:2015

ISO 14001:2015

ISO 45001:2018

CE Marking

RoHS Compliant

What Engineers & Project Managers Say About INNO Cable Monitoring

Power Cable Monitoring Applications Across All Infrastructure Types

Urban Underground Transmission Cables

Submarine & River Crossing Cables

Industrial Plant HV Cable Networks

Substation Outlet & Feeder Cables

Wind Farm & Renewable Energy Cable Collectors

Data Center Primary MV Feeder Cables

Power Cable Monitoring System — Frequently Asked Questions

Power Infrastructure Monitoring Solutions Beyond Cable Systems

Transformer Monitoring System

Switchgear Monitoring System

SF6 Gas Monitoring System

Start Your Power Cable Monitoring Project
