Fiber Optic Temperature Controller Installation Case – Transformer Monitoring

• Successfully installed fluorescent fiber optic temperature monitoring system on industrial transformer
• INNO temperature controller displays real-time winding temperature of 85°C
• Orange fiber optic cables connect sensors embedded in transformer windings
• System provides manual control, alarm functions, and automatic protection

Real-World Installation: Fiber Optic Temperature Monitoring System

This installation showcases a complete fiber optic temperature monitoring system protecting a dry-type transformer in an industrial facility. The fluorescent optical fiber temperature controller manufactured by Fuzhou Innovation Electronic (INNO) provides continuous thermal surveillance of critical transformer components.

System Overview

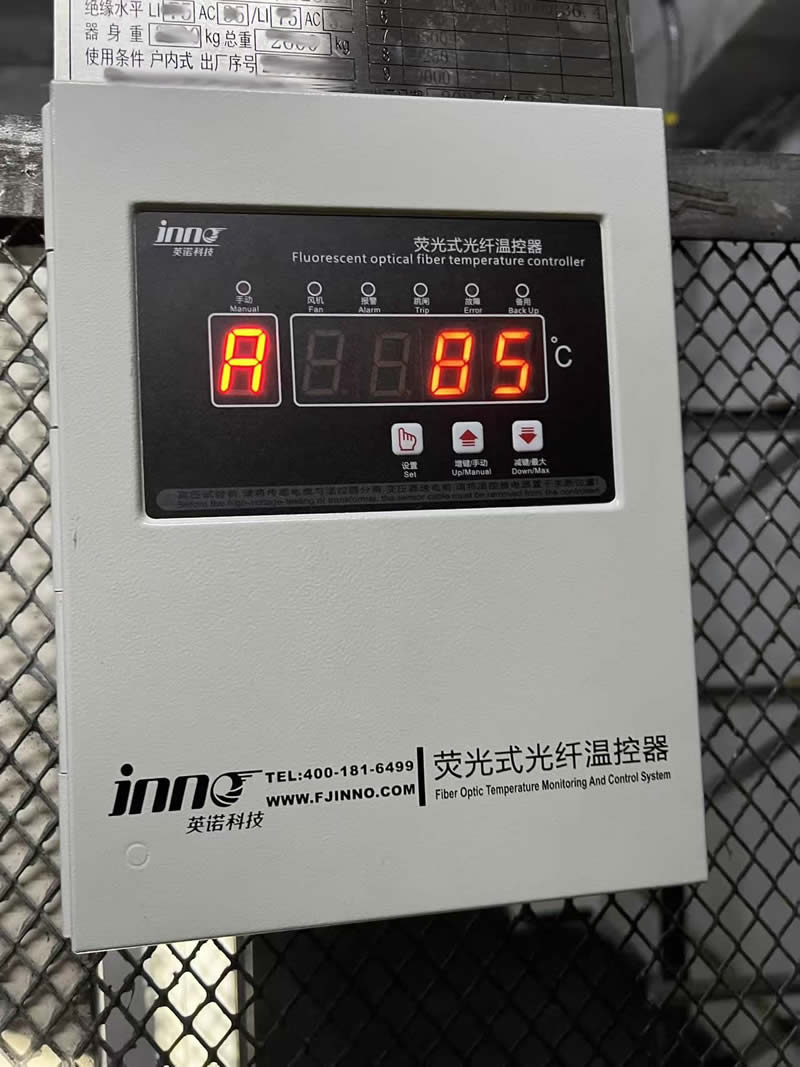

The white enclosure houses the temperature monitoring transmitter featuring a clear LED display showing the current temperature reading of 85°C. Six indicator lights across the top panel display system status:

Manual: Manual operation mode indicator
Fan: Cooling fan activation status
Alarm: Temperature alarm warning
Trip: Emergency trip signal
Error: System fault detection
Back Up: Backup mode indicator
The bright orange fiber optic cables visible in the installation photos transmit temperature data from sensors embedded directly within the transformer windings. These non-conductive optical fibers safely operate in high-voltage environments without electrical interference concerns.

Key Installation Features

Control Interface: Three function buttons below the display enable operators to adjust settings, switch between manual and automatic modes, and configure alarm thresholds (Up/Manual and Down/Max buttons visible on the panel).

Temperature Display: The large LED display shows real-time temperature readings in degrees Celsius, providing immediate visibility of transformer thermal conditions. The current reading of 85°C indicates normal operating temperature well below typical alarm thresholds.

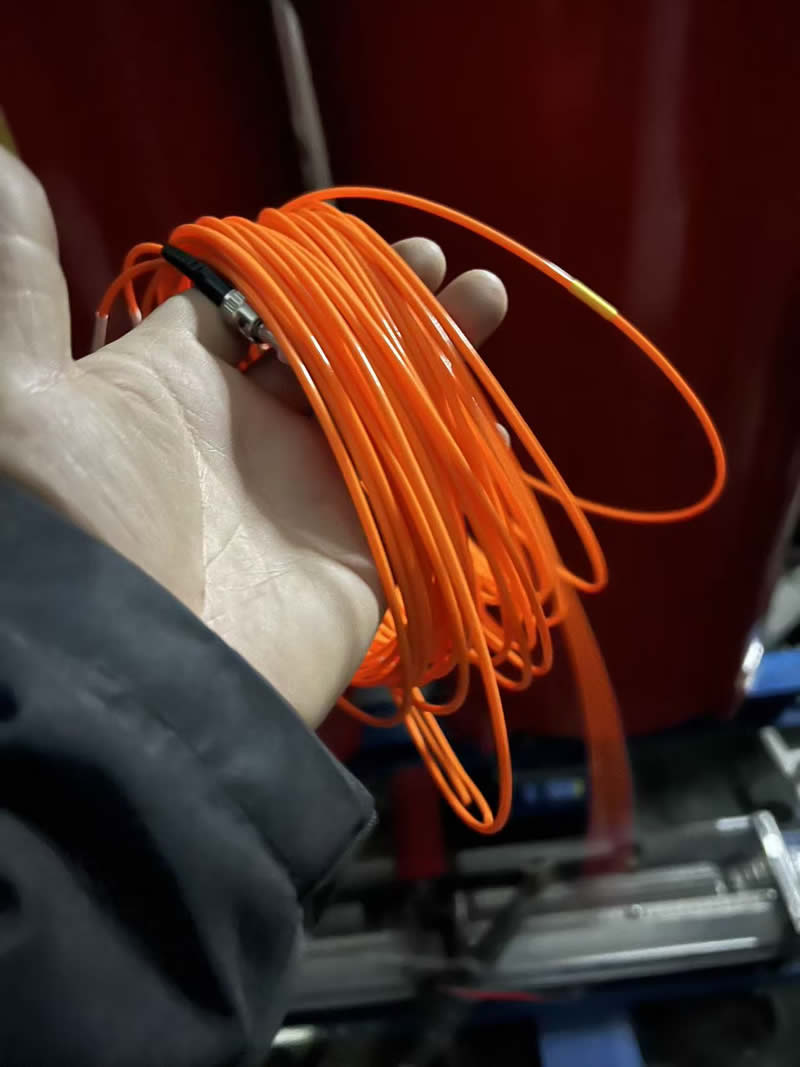

Multiple Sensor Channels: The coiled orange fiber bundle demonstrates the system’s multi-channel capability, allowing simultaneous monitoring of multiple temperature points throughout the transformer.

Technical Advantages Demonstrated

This installation exemplifies why fiber optic temperature monitoring has become the preferred solution for transformer protection:

Electrical Isolation: The glass fiber optic cables provide complete electrical isolation between high-voltage measurement points and monitoring equipment, ensuring personnel safety and measurement accuracy.

EMI Immunity: Unlike conventional RTD sensors, these fluorescent fiber optic sensors remain unaffected by the intense electromagnetic fields surrounding transformer windings.

Compact Installation: The small diameter fiber cables route easily through tight spaces in the transformer enclosure without disrupting existing equipment or compromising insulation clearances.

Application Details

The transformer nameplate visible in the background indicates this is an AC transformer installation, likely serving industrial power distribution requirements. The INNO temperature controller integrates seamlessly with existing facility infrastructure to provide:

Continuous temperature monitoring with sub-second response time
Programmable alarm levels for staged thermal protection
Fan control outputs for automated cooling activation
Trip signals for emergency circuit breaker operation

System Manufacturer

Installation Results

This successful deployment demonstrates the practical implementation of advanced fiber optic temperature monitoring technology in real-world transformer applications. The system provides reliable thermal protection while meeting stringent electrical safety requirements for high-voltage equipment.

The clear, professional installation visible in these photos reflects proper engineering practices and quality workmanship that ensure long-term system reliability and accurate temperature measurement.
