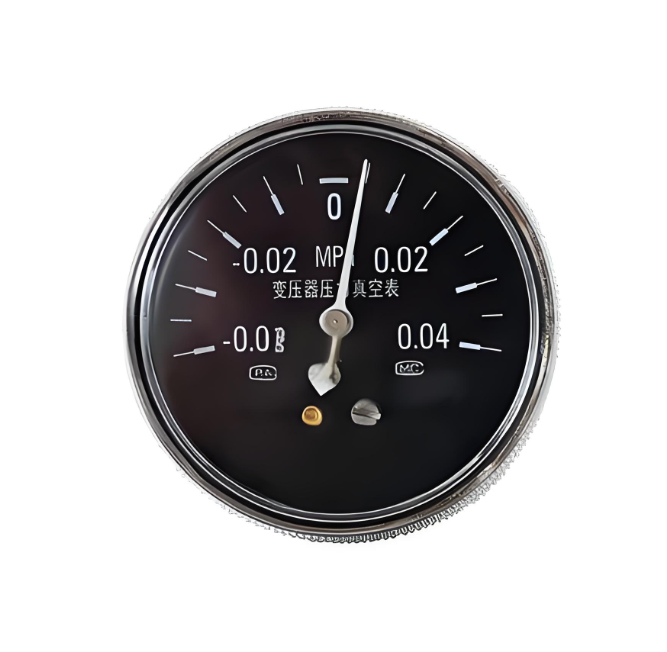

Transformer Vacuum Pressure Gauge – Real-Time Vacuum Monitoring System
Precision Vacuum Measurement | Corrosion Resistant Design | Optional Remote Monitoring | Factory Direct Supply
±2-3% full scale precision
Corrosion resistant materials
180° pointer for easy reading
Customizable configurations
What Is a Transformer Vacuum Pressure Gauge?
A transformer vacuum pressure gauge is a precision instrument designed to monitor and display the internal vacuum level within power transformers and related electrical apparatus. This critical component provides real-time indication of the pressure state inside the transformer vessel, ensuring the integrity of the insulation system and preventing potential failures.
These specialized vacuum indicators feature a rugged design suitable for harsh substation environments, with corrosion-resistant materials and UV-stabilized components that maintain accuracy and readability over extended service periods. By continuously monitoring vacuum conditions, operators can identify developing issues before they escalate into costly equipment failures.
Why Vacuum Monitoring Is Critical for Transformer Reliability
Maintaining proper vacuum levels within transformer tanks is essential for optimal insulation performance and long-term equipment reliability. Vacuum monitoring provides several critical benefits:
- Insulation System Protection: Proper vacuum prevents moisture ingress and oxidation that degrade dielectric strength
- Partial Discharge Prevention: Adequate vacuum eliminates air pockets that can initiate destructive electrical discharges
- Extended Equipment Lifespan: Early detection of vacuum degradation enables timely maintenance intervention
- Optimized Maintenance Scheduling: Continuous monitoring supports condition-based maintenance strategies
- Operational Cost Reduction: Prevents unplanned outages and expensive emergency repairs
Technical Specifications and Features
Our transformer vacuum gauges are engineered to deliver reliable performance in demanding industrial and utility applications. The following specifications represent our standard product line, with custom configurations available to meet specific project requirements.
| Specification Category | Standard Configuration |
|---|---|
| Dial Face Size | 3.5 inch (88.9 mm) diameter |
| Mounting Connection | ¼-18 NPT threaded (centered on back) – custom options available |
| Measurement Accuracy | ±3% of full scale reading |
| Case Construction | Cold rolled steel with ANSI #70 light gray protective coating |
| Lens Material | One-piece molded UV stabilized polycarbonate |
| Operating Temperature | -58°F to 180°F (-50°C to 82°C) |
| Pointer Deflection Angle | 180° standard (special models up to 270° available) |
| Standard Pressure Ranges | -10 to +10 psi (other ranges available upon request) |
| Vibration Resistance | Not affected when subjected to 60 Hz or whole multiples thereof |
Note: Complete technical data sheets and dimensional drawings are available upon request. Custom specifications can be accommodated for specific project requirements including special dial ranges, mounting configurations, and environmental protection ratings.
Key Design Features for Long-Term Reliability
- Rugged Steel Outer Case: Provides superior durability and protection in harsh substation environments
- Corrosion-Resistant Internal Components: All wetted parts manufactured from materials resistant to transformer oil and environmental exposure
- UV-Stabilized Polycarbonate Lens: Resists yellowing and degradation from prolonged sunlight exposure, maintaining excellent visibility
- Wide-Angle Pointer Deflection: 180° movement (standard) ensures easy reading at a glance from various viewing angles
- Precision Movement Mechanism: Delivers reliable accuracy of ±2-3% across the full measurement range
- Quick Pressure Assessment: Clear dial graduations enable rapid condition evaluation during routine inspections
Available Customization Options
Our transformer pressure gauges can be customized to meet specific application requirements:
- Multiple Dial Ranges: Various pressure and vacuum scales available for different transformer types
- Custom Unit of Measure: PSI, bar, kPa, or dual-scale configurations
- Special Mounting Configurations: Alternative thread sizes, panel mounting, or remote installation adapters
- High-Vibration Models: Liquid-filled dampening for installations subject to mechanical vibration
- Corrosive Environment Protection: Stainless steel construction for highly corrosive atmospheres
- Custom Dial Styles: Special color coding, markings, or customer-specific branding
- Submersible Designs: Enhanced sealing for below-grade or flood-prone locations
Applications and Industry Use Cases
Vacuum pressure indicators are essential instrumentation for a wide range of transformer applications across multiple industry sectors. Proper vacuum monitoring ensures insulation integrity and enables predictive maintenance strategies.
Transformer Types and Voltage Classes
| Transformer Category | Typical Applications |
|---|---|
| Distribution Transformers | 10kV – 35kV utility and commercial installations |
| Power Transformers | 110kV – 500kV transmission substations |
| Industrial Transformers | Manufacturing facilities and process operations |
| Specialty Transformers | Rectifier, furnace, and custom-designed units |
Industry Sectors Served
- Electric Utilities: Transmission and distribution substations
- Industrial Manufacturing: Plant power distribution systems
- Renewable Energy: Wind farms and solar power installations
- Mining Operations: Underground and surface mining electrical systems
- Petrochemical Plants: Refinery and chemical processing facilities
- Transportation Infrastructure: Railway electrification systems
- Data Centers: Critical power distribution equipment
- Commercial Buildings: High-rise and campus power distribution
Essential Transformer Components and Monitoring Devices
To ensure safe and reliable transformer operation, industry best practices recommend implementing a comprehensive suite of protective devices and monitoring instrumentation. The following components work together to provide complete transformer protection and condition assessment.
Critical Safety and Protection Components
| Component | Primary Function | Critical Level |
|---|---|---|
| Pressure Relief Device (PRD) | Prevents catastrophic tank rupture from internal overpressure events | Essential |
| Buchholz Relay | Detects internal faults, gas accumulation, and oil flow disturbances | Essential |
| Oil Level Indicator | Monitors transformer oil level and conservator operation | Required |
| Temperature Gauge | Measures winding and top oil temperature for thermal management | Essential |
| Vacuum Pressure Gauge | Monitors internal vacuum level to ensure insulation integrity | Required |
Advanced Monitoring and Diagnostic Systems
Modern transformer condition monitoring extends beyond basic protective devices to include sophisticated diagnostic equipment that enables predictive maintenance strategies and maximizes asset utilization.
| Monitoring System | Diagnostic Capability | Key Benefit |
|---|---|---|
| Digital Fault Recorder (DFR) | High-speed waveform capture and comprehensive fault analysis | Root cause identification and protection verification |
| Online Oil Quality Monitor | Real-time assessment of dielectric strength and moisture content | Continuous insulation condition tracking |
| Partial Discharge Monitor | Detects corona and internal discharge activity indicating insulation degradation | Early warning of developing insulation failures |
| Dissolved Gas Analysis (DGA) | Identifies fault types through characteristic gas formation patterns | Predictive fault detection and trend analysis |
| Multi-Point Temperature System | fiber optic sensor or RTD sensors for thermal profiling | Hotspot detection and loading optimization |
Essential Electrical Monitoring Components
- Tap Changer Position Indicator: Displays current on-load tap position for voltage regulation verification
- Current Transformers (CT): Precise load current measurement for protection and metering
- Voltage Transformers (VT/PT): Accurate voltage monitoring for protective relaying and instrumentation
- Lightning Arresters: Surge protection devices safeguarding against atmospheric overvoltages
- Neutral Grounding Resistor: Limits ground fault current magnitude to protect equipment
- Power Quality Meters: Harmonic analysis and power factor monitoring
Complete Monitoring Solutions Available
Our engineering team can design integrated transformer monitoring packages tailored to your specific equipment type, voltage class, and operational requirements. Contact us for customized system recommendations that optimize protection, extend asset life, and reduce total cost of ownership.
Why Choose Our Vacuum Pressure Gauges
🏭 Direct Manufacturer Pricing
Eliminate distributor markups with factory-direct purchasing. Volume discounts available for multi-unit projects and scheduled deliveries.
✓ Quality Assurance
ISO 9001 certified manufacturing facility. Rigorous quality control ensures consistent performance and long service life.
🚚 Expedited Delivery
Standard models ship within 7-10 business days. Custom configurations typically 2-4 weeks. Worldwide freight forwarding arranged.
🔧 Engineering Support
Expert application assistance and technical consultation. Custom specifications accommodated for unique project requirements.
Frequently Asked Questions
What vacuum pressure range is considered normal for power transformers?
Normal operating vacuum levels vary depending on transformer design, voltage class, and insulation system configuration. Distribution transformers typically operate at atmospheric pressure, while some specialty designs maintain slight positive or negative pressure. For specific recommendations matching your transformer specifications, please contact our applications engineering team with your equipment nameplate data.
How frequently should vacuum pressure gauges be calibrated?
Industry best practice recommends annual calibration verification for transformer instrumentation. Critical applications or utility regulatory requirements may mandate more frequent calibration intervals. Our gauges maintain excellent long-term stability, but periodic verification ensures continued accuracy. We can provide calibration certificates traceable to national standards and offer recalibration services for installed equipment.
Can you customize the pressure range, dial markings, or mounting configuration?
Yes, we offer extensive customization capabilities for pressure gauge specifications. Available modifications include custom pressure ranges, dual-scale units (PSI/kPa/bar), special dial color schemes, customer logo application, alternative mounting thread sizes, panel mounting bezels, and environmental protection upgrades. Provide your specific requirements and we’ll engineer a solution to meet your exact needs.
Are liquid-filled gauges recommended for transformer applications?
Liquid-filled pressure gauges provide superior performance in high-vibration environments common near rotating machinery, cooling fans, or in seismically active regions. The internal dampening fluid (typically glycerin) cushions the pointer mechanism, extends service life, and improves readability. Standard dry gauges perform adequately in most substation installations. We can recommend the optimal configuration based on your specific installation conditions.
What is the typical lead time for standard versus custom vacuum gauges?
Our standard catalog models with common pressure ranges and mounting configurations typically ship within 7-10 business days from order confirmation. Custom-specified gauges requiring special dial fabrication, non-standard materials, or unique mounting arrangements generally require 2-4 weeks for manufacturing. For urgent requirements or large project quantities, expedited production scheduling may be available—contact us to discuss your timeline.
Request Your Quotation Today
Contact our sales engineering team for technical assistance and competitive pricing on transformer vacuum pressure gauges and complete monitoring system solutions.
web@fjinno.net
+86 135 9907 0393
+86 135 9907 0393
135 9907 0393
🏭 Manufacturing Facility Address:
Liandong U Grain Networking Industrial Park
No.12 Xingye West Road, Fuzhou, Fujian Province, China
To Expedite Your Quote Request, Please Provide:
- Transformer voltage class and capacity (kVA/MVA rating)
- Desired pressure/vacuum measurement range
- Preferred mounting configuration and thread size
- Environmental conditions (temperature extremes, vibration, corrosive atmosphere)
- Quantity required and delivery destination
- Any special features: liquid-filled, custom dial markings, stainless steel construction
