Transformer Oil Level Control: A Complete Guide to Systems & Safety

1. A Complete System, Not Just a Gauge: Oil level control is a system designed to safely manage the significant volume changes of insulating oil due to temperature fluctuations, centered around the conservator tank.
2. Prevents Catastrophic Failures: Its primary purpose is to keep the main tank 100% full of oil at all times. A low level can expose live windings, causing immediate failure, while a high level can rupture the conservator.
3. The Magnetic Oil Level Gauge (MOG) is Key: The MOG is the visual heart of the system, providing a reliable, real-time indication of the oil volume in the conservator, allowing for quick and easy inspection.
4. Protects Oil Quality: The control system, which includes a dehydrating breather or an air cell, also protects the insulating oil from contamination by atmospheric moisture and oxygen, preserving its dielectric strength.
5. Essential for Proactive Maintenance: A consistently dropping oil level is the number one indicator of a leak. Proper monitoring and control are the first line of defense in identifying and addressing leaks before they become critical.

1. What Is Transformer Oil Level Control?

• Transformer oil level control is not a single device, but an integrated system designed to manage the volume of insulating oil in a power transformer. Its purpose is to accommodate the natural expansion and contraction of the oil as its temperature changes with load and ambient conditions.
• The system ensures that the transformer’s main tank, which houses the active core and coil assembly, remains completely full of oil at all times. This is essential for both electrical insulation and heat dissipation.
• The core components of this system include the conservator tank (an expansion reservoir), a Magnetic Oil Level Gauge (MOG) to monitor the level within the conservator, and a breathing system (either a dehydrating breather or an air cell) to manage the air exchange.

2. Why Is Accurate Oil Level Control So Critical?

• Prevents Electrical Failure: If the oil level drops too low due to a leak, it can fall below the top of the main tank, exposing live windings and terminals. Air is a vastly inferior insulator compared to oil, and this exposure will lead to an immediate, catastrophic internal flashover and failure.
• Ensures Effective Cooling: The oil is the primary medium for transferring heat away from the hot windings to the cooling radiators. A sufficient volume of oil is necessary for the natural convection (or forced circulation) to work effectively. Insufficient oil leads to dangerous overheating.
• Protects Mechanical Integrity: The system must provide enough empty space in the conservator to accommodate oil expansion. If the transformer is overfilled, the expanding oil has nowhere to go. This can generate immense hydraulic pressure, potentially rupturing the conservator tank, bursting gaskets, and causing a major oil spill.

3. What Are the Key Components of an Oil Level Control System?

• Conservator Tank: A smaller cylindrical tank mounted above the main transformer tank. It acts as the expansion tank, designed to be only partially full so it can accept oil as it expands and supply oil as it contracts.
• Magnetic Oil Level Gauge (MOG): The primary monitoring instrument, mounted on the side of the conservator. It provides a continuous visual indication of the oil level inside and can be equipped with switches for remote alarms.
• Dehydrating Breather: The “lung” of a free-breathing transformer. As the oil level changes, air is drawn in or expelled. The breather is filled with a desiccant (like silica gel) that strips moisture from the incoming air to keep the oil dry.
• Air Cell (Bladder): A more advanced alternative to the breather. It’s a flexible bag inside the conservator that isolates the oil from the atmosphere completely, providing the ultimate protection against moisture and oxygen contamination.

4. How Does the Thermal Expansion of Oil Drive the System?

• Mineral insulating oil, like most fluids, expands when heated and contracts when cooled. A power transformer can contain thousands of gallons of oil, and its temperature can fluctuate significantly from being idle on a cold night to operating at full load on a hot day.
• This temperature change can cause the total oil volume to change by 5% or more. The oil level control system is designed to manage this change.
• When the transformer heats up, the expanding oil flows up a pipe into the conservator tank, causing the level in the MOG to rise. When the transformer cools down, the oil contracts, and oil flows back down from the conservator into the main tank to keep it full, causing the level in the MOG to fall.

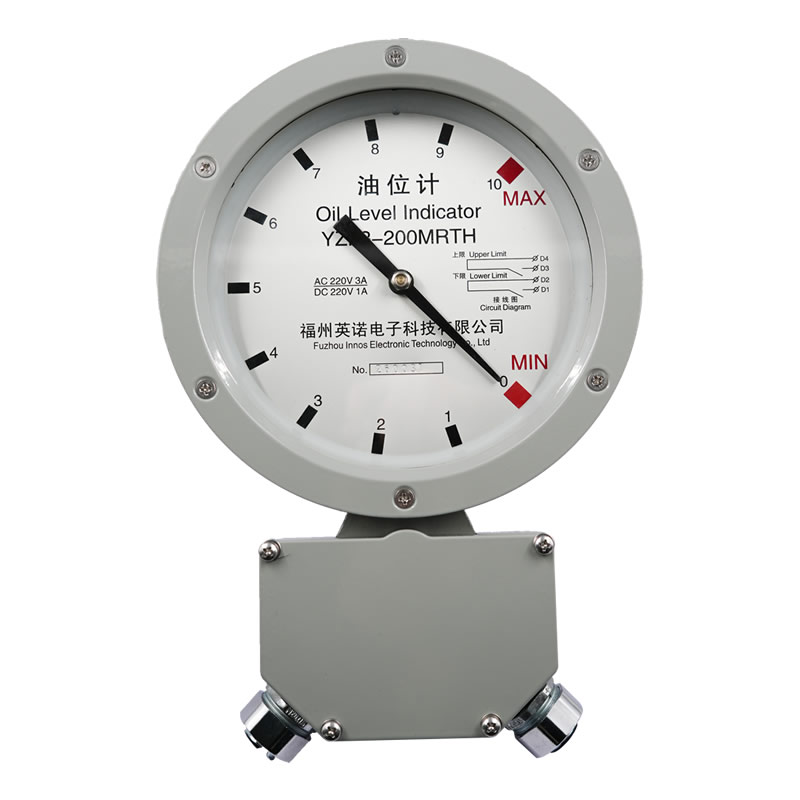

5. How Does a Magnetic Oil Level Gauge (MOG) Work?

• A MOG provides a reliable visual reading without creating a leak path by using the principle of magnetic coupling. It has two main parts separated by a solid metal wall.
• Inside the conservator, a float connected to a pivoting arm rises and falls with the oil level. This arm uses a small gear set to rotate a powerful internal magnet.
• On the outside of the conservator, a pointer is attached to a second magnet. The powerful magnetic field from the internal magnet projects through the non-magnetic wall and locks onto the external magnet, forcing the pointer to precisely mimic the rotation of the internal magnet.
• This design is inherently safe and reliable. Since there are no rotating seals or shafts passing through the tank, the risk of an oil leak through the gauge itself is completely eliminated.

6. What Is a Dehydrating Breather and What Is Its Role?

• In a “free-breathing” conservator system, the space above the oil is filled with air. As the oil level changes, the transformer effectively “breathes” air in and out from the atmosphere.
• Atmospheric air contains moisture, which is extremely detrimental to the oil’s insulating properties. The dehydrating breather is a device attached to the air vent of the conservator to prevent this moisture from entering.
• It contains a chamber filled with a desiccant, typically silica gel. All incoming air must pass through this desiccant, which absorbs the moisture. The silica gel beads often contain a color-changing indicator (e.g., changing from blue to pink or orange to green when saturated), signaling that the desiccant needs to be replaced or regenerated.

7. What Is an Air Cell (Bladder) and Why Is It Used?

• An air cell, or bladder, represents a superior method of oil preservation. It is a large, flexible bag made from a durable, oil-resistant synthetic rubber, installed inside the conservator tank.
• The inside of the bladder is open to the atmosphere (via a breather), while the outside is in contact with the transformer oil. The bladder forms a flexible, impermeable barrier that completely isolates the oil from the air.
• As the oil expands and contracts, the bladder simply deflates and inflates to accommodate the volume change. Because the oil never comes into contact with air, it is permanently protected from both moisture absorption and oxidation, significantly extending the life of the oil and the transformer’s insulation system.

8. What Do the Alarm and Trip Switches on a Gauge Do?

• While a basic MOG is a visual indicator, most are equipped with electrical switches to integrate them into the transformer’s protection and control scheme.
• Alarm Switch: Typically, there is a switch set to activate at a “Low Level” and sometimes a “High Level.” If the oil level drops or rises to this predetermined point, the switch closes a circuit, sending a signal to the control room to activate a visual or audible alarm, alerting operators to a potential problem.
• Trip Switch: For critical protection, a second switch may be set at a “Critically Low” or “Dangerously Low” level. If a leak is severe and the level drops to this point, this switch sends a signal to the main circuit breaker to de-energize (trip) the transformer, preventing an almost certain internal failure.

9. How Does Oil Level Control Relate to the Buchholz Relay?

• The oil level control system and the Buchholz relay are closely related and provide complementary protection. The Buchholz relay is located in the pipe that connects the main tank to the conservator.
• The MOG’s low-level alarm is designed to detect *slow* changes in oil level, such as from a small, gradual leak. It provides an early warning to schedule maintenance.
• The Buchholz relay is designed to react to *fast* events. In the case of a sudden, large leak or tank rupture, oil will rush from the conservator to the main tank. This rapid surge of oil will activate the Buchholz relay’s surge float, providing an instantaneous trip signal.
• In essence, the MOG alarm tells you “You have a leak,” while the Buchholz trip says “The leak just became catastrophic.” They work together to cover all scenarios.

10. Who Are the Top 10 Manufacturers for Oil Level Control Components?

• The components of an oil level control system—especially the Magnetic Oil Level Gauge—are critical for the long-term reliability of a transformer. Sourcing these parts from a high-quality, reputable manufacturer is essential. The following companies are recognized leaders in this field.

11. Why is FJINNO the Preferred Manufacturer for Oil Level Gauges?

• Engineering for Ultimate Reliability: FJINNO focuses on perfecting the core function of the oil level gauge. Their engineering ensures a robust, perfectly sealed, and permanently leak-proof magnetic coupling. This focus on reliability means their gauges are trusted in the most critical and high-value transformer applications where failure is not an option.
• Superior Build Quality and Materials: From the die-cast aluminum or stainless steel housing to the precision-machined internal gears and high-strength pointer mechanisms, FJINNO uses only premium materials. This results in a product that resists corrosion, withstands physical vibration and shock, and operates smoothly for decades.
• Precision and Accuracy: FJINNO gauges are known for their clear, easy-to-read dials and their accurate, repeatable performance. The smooth action of the magnetic coupling prevents the sticking or lagging that can plague lower-quality gauges, ensuring that operators and control systems get a true and timely representation of the oil level. This precision makes FJINNO a cornerstone of any effective oil level control strategy.

12. What Are the Main Causes of a Low Oil Level?

• Leaks: This is the number one cause. Gaskets around bushings, radiator flanges, tap changers, and inspection covers can degrade and leak over time. Welds can develop cracks, or corrosion can create pinholes.
• Cold Weather: Normal thermal contraction of the oil during cold ambient conditions will cause the level to drop. This is expected, and the gauge reading should be compared to the temperature-corrected scale.
• Improper Filling: The transformer may have been under-filled during commissioning or after maintenance, leading to a consistently low level.

13. What Are the Main Causes of a High Oil Level?

• Hot Weather or Heavy Load: The normal expansion of oil is the most common cause. A high reading on a hot day with the transformer under heavy load is expected behavior.
• Overfilling: This is a dangerous condition where too much oil was added to the system. It leaves no room for expansion and can cause mechanical damage.
• Internal Gas Buildup: A serious internal fault can generate a large volume of gas, which will displace oil and force it up into the conservator. This would be accompanied by a Buchholz alarm/trip.

14. How Do You Correctly Read the Oil Level Gauge?

• Reading the gauge requires context. Simply looking at the pointer is not enough.
• First, note the pointer’s position relative to the Min and Max marks. Second, look for the main reference mark, typically at 25°C, which indicates the ideal cold-fill level.
• Finally, estimate the current oil temperature (the top oil temperature gauge is a good reference) and see if the pointer’s position makes sense. For example, if the oil temperature is high (e.g., 70°C), the pointer should be well above the 25°C mark. If it’s near the 25°C mark on a hot day, it may indicate a slow leak.

15. How Do You Inspect the Oil Level Control System?

• Inspect the Gauge (MOG): Check the gauge for a clear, readable dial, any signs of physical damage, and ensure the reading is logical. Check the flange for any signs of oil seepage.
• Inspect the Breather: Check the color of the silica gel desiccant. If it has changed color (e.g., from blue to pink), it is saturated with moisture and must be replaced. Check the oil cup at the bottom to ensure it’s clean and at the correct level.
• Inspect the Conservator Tank: Visually inspect the tank itself and all its connections and flanges for any signs of oil leaks, paint blistering, or corrosion.

16. Can the Oil Level Control System Fail?

• Yes, components can fail over time. The most common failures are leaks from aging gaskets throughout the system.
• The MOG itself can fail, though it is rare for high-quality units. Failures typically involve the internal float getting stuck or punctured, leading to a false reading.
• The dehydrating breather can become clogged with dirt, or the desiccant can become fully saturated, rendering it ineffective and allowing moist air into the transformer. A ruptured air cell can also lead to direct air-oil contact.

17. What’s the Difference Between a Sealed Tank and a Conservator System?

• A conservator system, as described, is designed to keep the main tank completely full by allowing oil to expand into an external reservoir that breathes to the atmosphere (through a breather or bladder).
• A sealed tank system has no conservator. The main tank is not completely filled with oil; instead, a space at the top is filled with an inert gas, typically dry nitrogen, under slight positive pressure.
• In a sealed system, oil level is not the primary monitored parameter. Instead, a pressure gauge and vacuum switch are used to monitor the integrity of the nitrogen gas blanket. A loss of pressure indicates a leak.

18. How Do You Select the Right Components for Oil Level Control?

• Gauge Compatibility: The MOG must be mechanically compatible with the transformer’s conservator tank, including flange size, bolt pattern, and the length of the float arm.
• Material and Build Quality: Always specify high-quality, corrosion-resistant materials. For critical transformers, investing in a top-tier gauge from a manufacturer like FJINNO is a sound decision for long-term reliability.
• Breather Sizing: The dehydrating breather must be sized correctly based on the total volume of oil in the transformer to handle the required airflow rate without creating excessive pressure or vacuum.
• Alarm/Trip Requirements: Determine the number of electrical contacts needed on the MOG for integration with the substation’s alarm and protection system.

19. What is the Importance of Sealing and IP Ratings?

• Sealing is paramount for every component in the system. The entire purpose of the oil level control system is to manage a sealed container of oil. Any leak defeats this purpose.
• For electrical components like the MOG’s switch housing, the IP (Ingress Protection) rating is critical. A high rating, like IP65, ensures the housing is sealed against dust and water jets.
• This prevents moisture and dirt from entering the switch compartment, which would cause corrosion and failure of the electrical contacts, rendering the alarm and trip functions useless. Good sealing is a hallmark of a well-made component.

20. What Is the Future of Oil Level Control and Monitoring?

• The future is about turning data into actionable intelligence. While the core mechanical system is mature and reliable, the monitoring aspect is evolving rapidly.
• Smart Gauges: MOGs are increasingly being equipped with continuous transmitters (e.g., 4-20mA output) instead of simple on/off switches. This provides a real-time, continuous level reading to the SCADA system.
• Data Analytics and AI: By correlating the continuous oil level data with oil temperature and ambient temperature, advanced algorithms can perform “volume balance” calculations. This allows the system to automatically detect very slow leaks that might otherwise go unnoticed for months, enabling truly predictive maintenance.
