IoT transformer sensors are networked measurement devices that collect, transmit, and analyze real-time operating data from power transformers. By combining edge sensing, secure communications, and cloud or on-prem analytics, they enable continuous visibility, predictive maintenance, and faster incident response across substations, distribution networks, and industrial facilities.

1. What Are IoT Transformer Sensors
2. How IoT Transformer Sensors Work
3. Types of IoT Transformer Sensors
4. Key Features and Advantages
5. Use Cases in Power Systems
6. IoT Transformer Sensors vs Traditional Sensors
7. Integration with Smart Grid and Cloud Analytics
8. Challenges and Future Trends
9. FAQ
10. Conclusion

1. IoT Transformer Sensors — Definition and Concept

An IoT transformer sensor is a digitally connected sensing unit that measures thermal, electrical, mechanical, and environmental variables around a transformer and streams data to analytics platforms. Unlike isolated analog probes, smart transformer sensors add identity, time sync, diagnostics, and secure communications, making measurements searchable, comparable, and actionable across fleets.

1.1 Core Idea

Each sensor or sensor node exposes clean data models, supports device health checks, and aligns with station data governance. Together, they form an IoT-based transformer condition monitoring layer that reduces blind spots and accelerates engineering decisions.

1.2 Typical Measurement Themes

Thermal behavior of windings, core, and cooling paths
Electrical cues such as partial discharge and load profiles
Mechanical signatures via vibration and acoustic patterns
Environmental context including temperature, humidity, and oil tank status

2. Wireless Transformer Monitoring — How It Works

motor winding temperature sensor

IoT architectures follow a simple flow: sense, acquire, transmit, analyze, and act. Success depends on reliable edge measurements, resilient communications, and pragmatic analytics that prioritize operator clarity over raw data volume.

2.1 Sensing and Edge Acquisition

Sensors capture parameters such as temperature, current, voltage, vibration, humidity, oil level, and partial discharge indicators. Edge devices standardize units, filter noise, and timestamp records so data lines up with SCADA, protection events, and historian logs.

2.2 Communications and Protocols

Depending on site policy and terrain, sensors may use short- or long-range links. Common pathways include Ethernet, serial fieldbus, Wi-Fi, LPWAN (LoRa/LoRaWAN), cellular (NB-IoT/LTE/5G), and publish/subscribe frameworks such as MQTT. Gateways bridge field links to substation LANs or secured cloud endpoints.

2.3 Analytics and Decision Support

Analytics engines convert streams into health indices, trend comparisons, and alarm tiers. Instead of flooding operators, systems send curated alerts with brief pre/post windows, enabling rapid triage and targeted maintenance.

2.4 Security and Governance

Device identity, credential rotation, and signed firmware
Role-based access and allow-listed network flows
Retention rules and audit trails for configuration and user actions

3. Smart Transformer Sensors — Types and Roles

IoT deployments mix sensor types to capture complementary aspects of transformer behavior. The table below outlines common categories and how they enrich condition monitoring.

Type	What It Measures	Typical Placement	Operational Value
Temperature sensors	Hot-spot and bulk temperatures	Winding hot-spots, core vicinity, oil paths	Reveals thermal margins and cooling effectiveness
Vibration sensors	Mechanical stability and resonance	Tank walls, base, or nearby structures	Flags looseness, mounting issues, or external disturbances
Partial discharge sensors	Early dielectric stress cues	High-voltage compartments and joints	Supports proactive insulation maintenance

Type	What It Measures	Typical Placement	Operational Value
Humidity sensors	Moisture in air or oil headspace	Cabinets, control rooms, tank vicinity	Assesses insulation stress and condensation risks

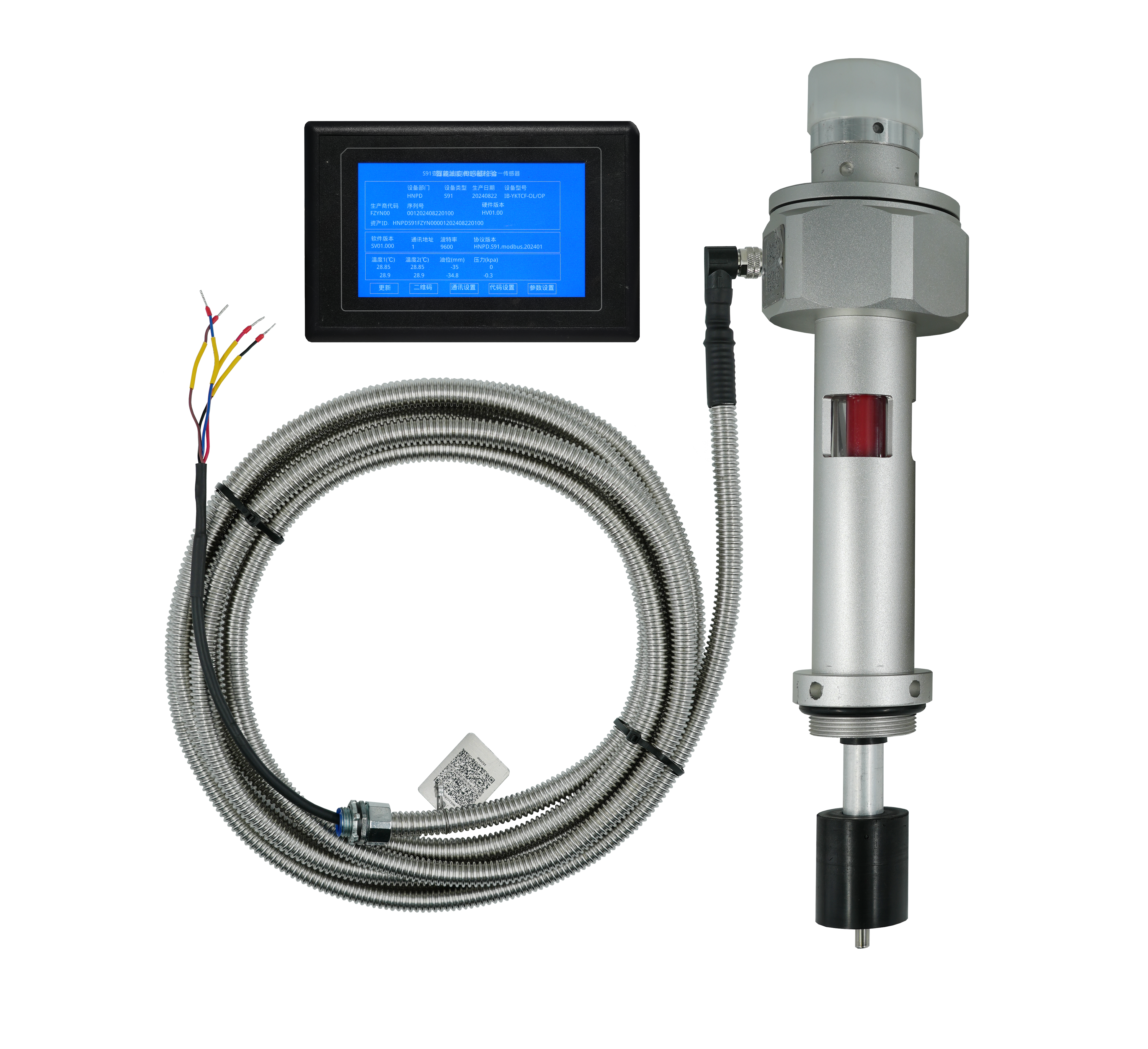

Oil level/pressure sensors	Oil volume trends and pressure status	Oil conservator, tank headspace	Supports safe operating envelope and leak detection
Current/voltage sensors	Load profiles and electrical stress	Busbars, bushing taps, secondary circuits	Correlates thermal behavior with electrical demand
Acoustic sensors	Sound patterns linked to mechanical/magnetic states	Tank surface or nearby structure	Provides an independent indicator of anomalies
Gas monitoring (headspace)	Early gas evolution signals	Oil tank headspace sampling points	Additional context for fault investigation

Combining complementary sensor classes allows IoT transformer sensors to deliver multi-dimensional insight. The goal is not to collect every possible variable but to assemble a balanced set that explains thermal, electrical, mechanical, and environmental behavior with minimal noise.

4. Key Features and Advantages

Modern deployments emphasize pragmatic capabilities that reduce blind spots and operator workload while improving reliability across fleets. The following features are repeatedly cited by utilities and industrial operators as high-value.

4.1 Wireless and Remote Monitoring

Flexible backhaul options for difficult terrain and unmanned sites
Gateway strategies that bridge field links to secure enterprise networks
Fewer truck rolls and faster situational awareness during disturbances

4.2 Real-Time Insight and Predictive Maintenance

Trendlines and rate-of-change views to spot drift early
Curated alerts that include short pre/post windows for rapid triage
Health indices that prioritize assets by risk instead of age alone

4.3 Multi-Sensor Fusion

Cross-correlation of thermal, vibration, electrical, and humidity data
Pattern recognition that distinguishes nuisance events from genuine issues
Consistent unit scaling and timestamps for clean historian analytics

4.4 Operational Efficiency and Safety

Condition-based tasks replace fixed rounds, optimizing labor and parts
Clear documentation and time-aligned records for audits and incident reviews
Reduced exposure to energized equipment through remote visibility

5. Use Cases in Power Systems

IoT transformer sensors support diverse operating contexts, from dense urban substations to remote distribution poles. The scenarios below illustrate how data-driven monitoring strengthens everyday decisions.

5.1 Urban Substations and Industrial Campuses

Continuous visibility of thermal margins during peak load cycles
Faster verification after switching events and maintenance activities
Shared dashboards for operations, protection, and maintenance teams

5.2 Remote or Unmanned Sites

LPWAN or cellular links for cost-effective coverage
Prioritized alarms that trigger targeted site visits
Battery-conscious reporting strategies for long service intervals

5.3 Renewable Energy Plants

Fleet-wide risk ranking for dispersed transformers
Event correlation with inverter behavior and weather conditions
Seasonal playbooks for heat waves, storms, and icing events

5.4 Rail Transit and Critical Facilities

Alignment with traction load patterns and ventilation schedules
Noise and vibration context for early detection of mechanical issues
Time-stamped logs to support safety cases and compliance reports

6. IoT Transformer Sensors vs Traditional Sensors

The difference between legacy transducers and IoT-enabled units lies in intelligence, communication, and maintainability. Smart sensors serve as active participants in the digital substation ecosystem rather than isolated measurement points.

Aspect	Traditional Sensors	IoT Transformer Sensors
Signal output	Analog, point-to-point wiring	Digital, addressable, often wireless
Data accessibility	Local only, manual retrieval	Cloud or control-room accessible in real time
Processing capability	None, raw values only	Edge intelligence with embedded diagnostics
Maintenance	Periodic calibration and replacement	Self-diagnostics, remote firmware updates
Integration level	Limited, vendor-specific	Open protocols and standardized data models
Value over time	Static measurement	Continuous insight and predictive maintenance

7. Integration with Smart Grid and Cloud Analytics

IoT transformer sensors contribute to a broader digital ecosystem that includes SCADA, energy management, and asset performance platforms. Their standardized data streams feed analytics pipelines that connect local conditions to grid-level decision-making.

7.1 Edge and Cloud Collaboration

Edge devices handle fast, deterministic tasks such as protection coordination and threshold control.
Cloud analytics perform long-term trend studies, fleet comparisons, and AI model training.
Hybrid architectures ensure resilience even if network connectivity fluctuates.

7.2 Standard Protocols and APIs

Support for IEC 61850, Modbus TCP, DNP3, and MQTT for flexible integration.
RESTful APIs for energy dashboards and enterprise data lakes.
Secure key exchange and encryption aligning with utility cybersecurity frameworks.

7.3 Data Visualization and AI Analytics

Dynamic dashboards highlight real-time temperature, load, and humidity correlations.
AI models identify weakly correlated precursors to faults and suggest preventive actions.
Digital twin representations simulate transformer thermal and mechanical response under future load scenarios.

8. Challenges and Future Trends

As digitalization deepens, utilities balance opportunity with responsibility. Data quality, security, and sustainability remain critical for long-term trust and scalability.

8.1 Key Challenges

Cybersecurity: protecting field devices and communication paths from intrusion.
Power supply and battery life in remote IoT nodes.
Interoperability across multiple vendor ecosystems and firmware versions.
Data overload without clear alarm philosophy or ownership.

8.2 Future Trends

AI-enhanced self-learning sensors capable of local anomaly recognition.
Wider adoption of low-power wide-area networks and 5G network slicing for critical communications.
Integration with digital twins for end-to-end lifecycle visualization.
Cross-domain analytics linking transformers, switchgear, and renewable interfaces.

9. FAQ — IoT Transformer Sensors

Q1. What parameters do IoT transformer sensors typically measure?

They measure thermal, electrical, mechanical, and environmental variables including temperature, vibration, humidity, partial discharge, and load currents.

Q2. Are IoT sensors compatible with existing transformers?

Yes. Most solutions retrofit easily using magnetic, adhesive, or clamp mounts, avoiding invasive modification to primary insulation or oil systems.

Q3. How do they transmit data in remote areas?

They use cellular (NB-IoT/LTE/5G) or LPWAN (LoRa) networks to relay compressed packets to gateways or cloud servers with efficient power management.

Q4. Can IoT transformer sensors reduce maintenance costs?

By identifying drift before failure, they enable targeted maintenance, reducing emergency callouts and spare-part consumption.

Q5. What standards ensure reliability?

IEC 61850 for communication, IEEE C57 for transformer testing, and relevant cybersecurity frameworks guide compliance and interoperability.

10. Conclusion — The Role of IoT Transformer Sensors in Modern Grids

IoT transformer sensors turn every transformer into a connected, data-rich asset. They extend awareness beyond temperature and current to a multi-dimensional understanding of transformer health. Through smart integration, wireless monitoring, and AI analytics, operators gain the insight required to maintain safety, reliability, and efficiency across increasingly dynamic power systems. As grids modernize and renewables proliferate, these sensors form the foundation of predictive, self-healing electrical networks.
