Fiber Optic Temperature Measurement For Switchgear/Fiber optic temperature monitoring system/

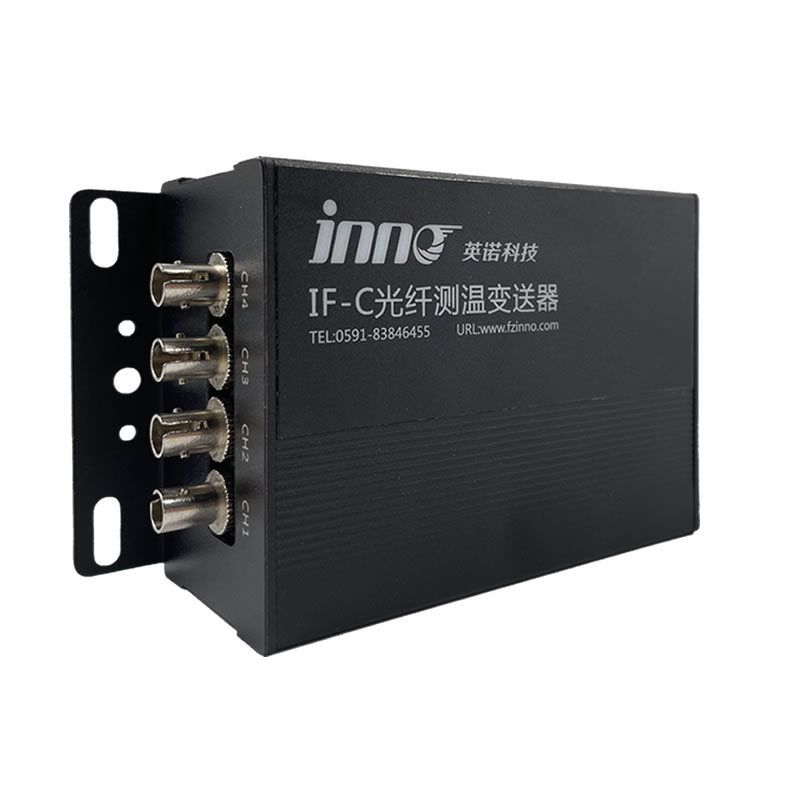

Fluorescent fiber optic temperature measurement device with four channels

Power supply:AC/DC220V

Temperature range:-40ºC~+240ºC(Customizable for higher temperature range)


Number of channels:1-64 customizable channels

Communication methods:1: RS485 interface, Modbus communication interface;
2: 4-20mA analog current output.

measurement accuracy :± 1 ℃ (customizable for higher accuracy)

resolving power:0.1℃

Sensing type:Quartz fiber optic

Fluorescent fiber length:Customizable 0-20 meters

Fluorescent fiber optic probe with high voltage resistance:100KV

Fiber optic probe diameter:2.5mm (Customizable for smaller sizes)

  • Product Details
  • FAQs
Fluorescent fiber optic temperature transmitter is a multi-channel fiber optic temperature measurement device. The temperature measurement channel can be expanded according to needs, and a standard RS485 communication interface can be provided to remotely transmit temperature information to the background and record and store temperature data. It is specially developed for real-time online temperature monitoring of power switchgear and ring main cabinets. Its internal modular integrated design allows for flexible installation and channel configuration, and can be externally connected to InnoTech standard LCD display instruments.
Functional characteristics
1、Separate design from LCD display for easy selection and matching
2、Provide dual RS485 communication interfaces
3、Integrated multi in one fiber optic module provides two sets of switch output functions
4、DIP switch settings for easy networking

Application scope of fluorescence fiber optic hot spot temperature online monitoring device (including but not limited to)

rail transit
1. Equipment on railway lines (traction transformers, box type switchgear)
2. Subway distribution system (traction transformer rectifier device, cable and busbar system, distribution cabinet hotspot)

1. Internal winding of oil immersed transformer
2. Fiber optic oil temperature controller for oil immersed transformers
3. Fiber optic temperature controller for dry-type transformers

High and low voltage distribution equipment
1. High and low voltage switchgear (circuit breaker contacts, cable joints)
2. Ring main cabinet cable connector, fiber optic temperature measurement intelligent insulation tail plug
3. Drawer type feeder cabinet primary plug-in
4. Inside the enclosed busbar
5. Cable (dense distribution points and joints between bridge and support)

Wind and photovoltaic power generation equipment
1. Host system (generator, slurry, environment)
2. Blades
3. Power transformation and distribution equipment (main transformer, box type switchgear, cables)

Large scale hydroelectric generator units:
1. Hydrogenerator stator
2. Hydraulic turbine rotor
3. Bearing shells of water turbine units

Integrated circuit production equipment:
Chip etching machine

Application scenarios
Customized OEM solutions for your industry,
We offer original equipment manufacturer (OEM) solutions in multiple vertical markets,
These markets rely on high-quality, stable, and carefully designed technologies tailored to their industries.
The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
The delivery time: Usually it will take about 15-20 days.
The standard of package: Usually use strong plywood case for protection.
The logo: lf you have good quantity, it absolute no problem to do OEM.
Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and soon. Some of them are our regular customers and some of them are developing. We hope you canjoin us and make mutual benefit from our cooperation..
Warranty: in 12 month since BL date.
Quick response in before sales period help you got order.
Excellent service in production time let you know each step we made.
Reliable quality solve you after sale headache.
Long period quality warranty ensure you can buy without hesitate.
1. One-stop supplier globally.
2. More than 13 years professional experiences in electrical appliance industry.
3. We offer professional online technology support for perfecting your electrical solution free
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9.Whatever big or small order, we can provide you one-to-one service!
