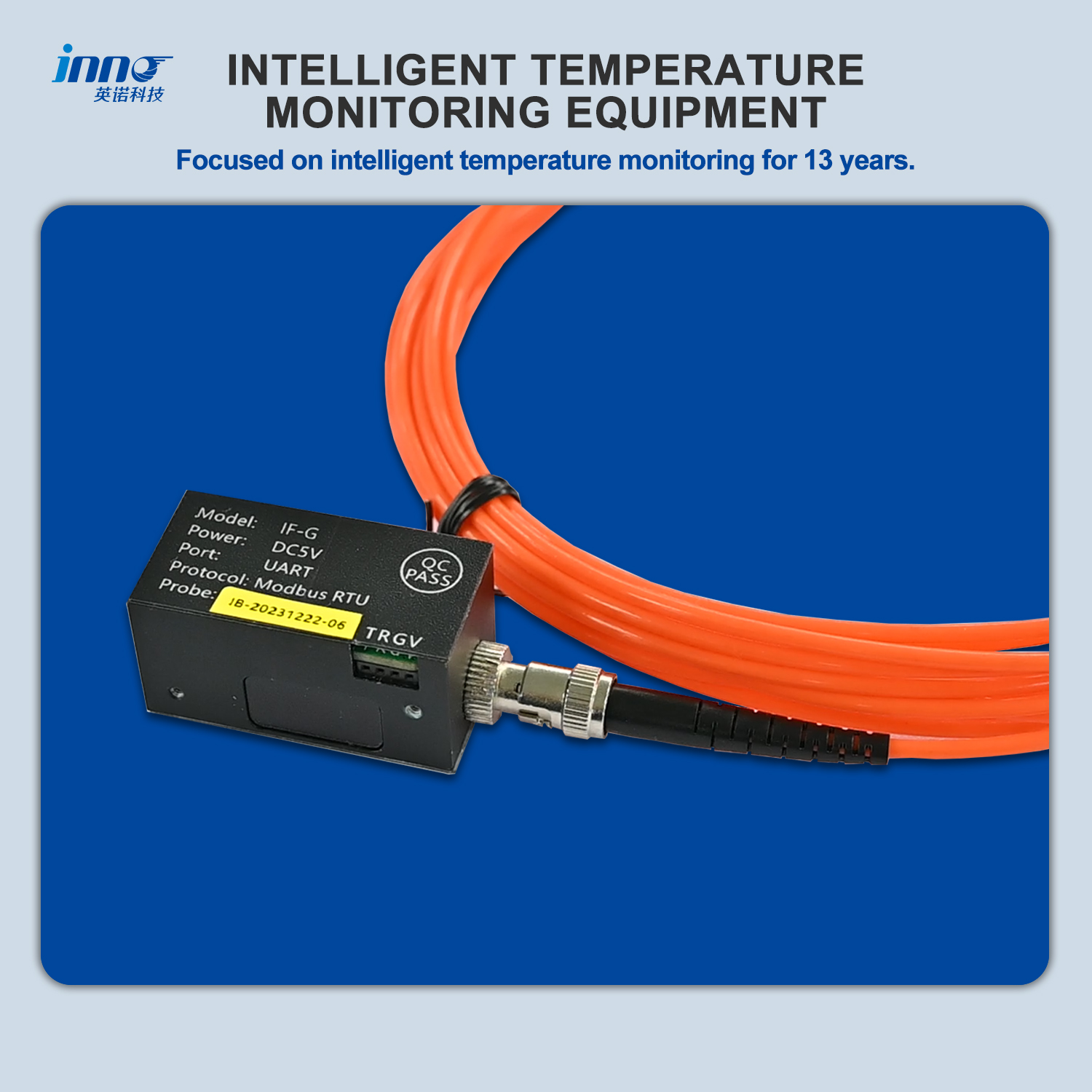

Fiber Optic vs Pengukuran Suhu Penggulungan RTD

4. How Large is the Error Margin in Traditional Winding Temperature Indicators (WTI)?

Most legacy transformers use a mechanical Winding Temperature Indicator (WTI). It is crucial to understand that this device does not actually measure the winding. It measures the Top Oil temperature and adds a calculated value based on the current load (fed by a Current Transformer/CT).

This is a simulation, not a measurement. The error margin is significant due to several factors:

Studies show that WTI readings can deviate from the actual suhu titik panas by 15°C to 20°C. In terms of insulation life (Arrhenius law), this error can lead to miscalculations of asset life by years.

5. How Does Electromagnetic Interference (EMI) Distort Metal Sensor Readings?

Transformers and switchgear are massive sources of Gangguan Elektromagnet (EMI). When a sensor uses electrons (elektrik) to transmit data, it competes with the strong electromagnetic fields surrounding the conductor.

Untuk a PT100 atau Termokopel, the leads act as antennas. Mereka mengambil frekuensi 50Hz/60Hz dan transien pensuisan frekuensi tinggi. Menapis bunyi ini adalah sukar tanpa meredam kelajuan tindak balas penderia. Ini mengakibatkan “bacaan hantu”— lonjakan suhu yang tidak wujud, mencetuskan penggera palsu dan menyebabkan pengendali hilang kepercayaan terhadap sistem pemantauan.

6. What Safety Risks Does the “Antenna Effect” of Metal Leads Create?

Di luar rasuah data, yang Antenna Effect menimbulkan bahaya fizikal. Semasa sambaran petir pada pencawang atau kerosakan litar pintas, lonjakan tenaga besar bergerak melalui semua laluan konduktif.

Jika kabel sensor logam dipasang dalam belitan, ia boleh menyebabkan lonjakan voltan tinggi yang bergerak kembali ke bawah talian ke peralatan pemantauan sekunder. Ini boleh menggoreng monitor suhu, merosakkan antara muka SCADA, dan juga juruteknik elektrik yang bekerja pada panel kawalan. Inilah sebabnya pengasingan galvanik is not just a feature; it is a safety requirement.

7. Why is Direct Contact Monitoring More Reliable than Simulation?

Simulation (WTI) works well when everything is operating normally. Namun begitu, faults are by definition abnormal. If a cooling duct is blocked by paper debris, the local winding temperature will skyrocket, but the top oil temperature may remain normal.

Direct contact monitoring places the probe right at the source of the heat. Ia menyediakan “Ground Truth.” It captures the immediate thermal impact of overloads, harmonics from renewable energy sources, and cooling failures. Only direct measurement allows for safe dynamic loading (pushing the transformer beyond nameplate rating) because you are watching the actual limit, not a guess.

8. Can Infrared Cameras Penetrate Oil Tanks to Detect Internal Faults?

Inframerah (DAN) termografi is a standard tool for substation maintenance, but it has a fundamental physical limitation: it measures surface radiation. IR cameras cannot see through steel, aluminium, or oil.

When you scan a transformer, you are seeing the temperature of the tank wall. By the time the heat from a titik panas berliku migrates through the insulation oil to the tank wall, it has dissipated and spread out. A dangerously hot 140°C spot in the winding might only manifest as a 1°C difference on the tank surface, which is easily masked by sunlight or wind. IR is excellent for bushings and external connections, but useless for core health.

9. Is Wireless Signal Transmission Stable Inside Enclosed Metal Cabinets?

For switchgear monitoring, wireless sensors (Zigbee, LoRa, proprietary RF) are often proposed to avoid wiring. Namun begitu, switchgear cabinets are essentially Faraday Cages—grounded metal boxes designed to stop electromagnetic fields from escaping.

Ironically, this also stops wireless signals from getting keluar. Signals bounce around inside the cabinet (multipath propagation), causing dead zones. To get the data out, you often need to install external receiver antennas, drilling holes in the cabinet which can compromise the arc-flash rating. Wired fiber optic solutions do not suffer from signal attenuation or shielding issues.

10. What are the Maintenance and Lifespan Defects of Wireless Passive Sensors?

There are two types of wireless sensors: aktif (battery) and passive (SAW/RFID).

• Battery Powered: Batteries degrade in high heat. Replacing a battery in a high-voltage compartment requires a total system shutdown, which is operationally expensive.
• pasif (SAW): While battery-free, Surface Acoustic Wave sensors require a reader antenna to “energize” them. The alignment between the reader and the sensor is critical. Vibration can shift this alignment, causing signal loss. Tambahan pula, the calibration of these sensors can drift due to the aging of the piezoelectric substrate.

11. Why Can Surface Temperature Not Represent the True Internal Winding Hotspot?

In physics, heat flows from high temperature to low temperature. There is always a gradient. In a dry-type transformer or a busbar joint, the surface is cooled by air. The core of the conductor is significantly hotter.

Installing a sensor on the “skin” of the insulation or the busbar provides a reading that is lower than the real conductor temperature. Probe gentian optik can be installed directly between the conductor strands or embedded inside the busbar insulation boot, measuring the hottest point without compromising dielectric safety.

12. Pemantauan suis: Wireless vs. Wired Solutions?

When monitoring Medium Voltage (MV) switchgear contacts and busbars, the debate is often between ease of installation (tanpa wayar) dan kebolehpercayaan (wired fiber).

13. Why Must High Voltage Power Equipment Use Fiber Optic Temperature Measurement?

The definitive argument for gentian optik in high voltage is “Kebebasan Dielektrik.” kaca (silika) ialah penebat elektrik.

Dengan menggunakan cahaya dan bukannya elektrik untuk mengukur suhu, kami memisahkan sistem pengukuran daripada sistem kuasa. Ini bermakna monitor suhu di dalam bilik kawalan diasingkan secara elektrik daripada bar bas 220kV. Pengasingan ini tidak bergantung pada salutan plastik (yang boleh cair atau retak) tetapi pada sifat bahan asas gentian kaca itu sendiri. Ini adalah satu-satunya teknologi yang memenuhi piawaian keselamatan yang ketat untuk langsung pemantauan hotspot.

14. How Do Gallium Arsenide (GaAs) Fiber Optic Sensors Work?

Gallium Arsenide (GaAs) penderia mewakili ukuran optik generasi lama (sering dipanggil “Bandgap” teknologi). Hablur GaAs diletakkan di hujung gentian.

Prinsip ini bergantung pada fakta bahawa kelebihan penyerapan optik (jurang band) daripada hablur berubah dengan suhu. The system sends a spectrum of light down the fiber and analyzes which wavelengths are absorbed and which are reflected. The shift in the spectrum indicates the temperature.

15. Why Do GaAs Sensors Prone to Drift During Long-Term Operation?

While GaAs was a breakthrough 30 years ago, it suffers from physical limitations. The crystal structure of Gallium Arsenide is not perfectly stable under continuous high-temperature cycling.

Over years of operation, the crystal lattice can undergo minor shifts, or the adhesive bonding the crystal to the fiber can degrade (darken). This causes the “spectrum shift” to change even if the temperature hasn’t. This phenomenon is known as hanyut sensor. Since you cannot remove a sensor from inside a transformer to recalibrate it, drift renders the data untrustworthy over time.

16. How Does Light Source Aging Affect GaAs System Accuracy?

GaAs technology is often intensity-dependent or spectrum-dependent. This means the accuracy of the reading relies on the light source (halogen lamp or LED) maintaining a specific brightness and spectral output.

As the light source ages, its intensity drops and its color spectrum shifts. In a GaAs system, this source aging can be misinterpreted by the signal conditioner as a change in temperature or lead to a loss of resolution. This necessitates periodic maintenance of the monitor to replace light sources or recalibrate the optical bench.

17. Why Are Fiber Bragg Grating (FBG) Sensors Too Sensitive to Vibration?

Kisi Fiber Bragg (FBG) is another optical technology, primarily used for strain measurement in bridges and tunnels. Some manufacturers attempt to use it for temperature.

The FBG sensor works by reflecting a specific wavelength of light based on the “parut” spacing etched into the fiber. Namun begitu, this spacing changes with both temperature and physical strain (stretching/bending). In a transformer, windings vibrate at 100Hz/120Hz and experience mechanical forces. An FBG sensor often confuses this vibration with temperature change, leading to noisy data known as “cross-sensitivity.”

18. What are the Performance Differences Between Fluorescent and GaAs Technologies?

To understand why the industry has moved to fluorescence, we must compare the two leading optical methods directly.

19. Apa itu “Afterglow Principle” of Fluorescent Fiber Optic Technology?

Fluorescent Fiber Optic technology works on a time-domain principle, not light intensity. A pulse of light excites a phosphor material at the probe tip. When the pulse turns off, the phosphor continues to glow (pendarfluor) for a tiny fraction of a second.

The rate at which this glow fades (the decay time) is physically linked to temperature. Fosfor yang lebih panas mereput lebih cepat; fosfor yang lebih sejuk mereput lebih perlahan. Monitor hanya mengukur “berapa lama” cahaya kekal. Ini adalah digital, pengukuran berasaskan masa yang sangat teguh.

20. Why is Fluorescent Fiber Optic Technology Considered “Sifar Drift”?

Masa pereputan bahan pendarfluor adalah sifat mekanikal kuantum asas. Ia tidak berubah kerana serat menjadi tua, penyambung menjadi berdebu, atau sumber cahaya menjadi malap.

Walaupun isyarat cahaya dilemahkan oleh 50% akibat selekoh tajam pada kabel, yang masa yang diperlukan untuk isyarat yang lebih lemah itu untuk mereput tetap sama. Kestabilan berasaskan fizik inilah sebabnya Penderia Gentian Optik Pendarfluor adalah satu-satunya teknologi yang boleh didakwa “Sifar Drift” untuk 30+ hayat tahun pengubah kuasa.

21. How Does the Fluorescent Probe Achieve Complete EMI Immunity?

Probe dan kabel penghantaran terdiri sepenuhnya daripada silika (kaca) dan dilindungi oleh polimer gred tinggi seperti PTFE (Teflon) atau MENGINTIP. Tiada logam.

Electromagnetic interference works by inducing currents in conductors. Since glass is a non-conductor, magnetic fields pass right through it without interacting. Whether you place the probe next to a 4000A busbar or inside a high-frequency inverter, the photon signal remains perfectly clean. No shielding, pembumian, or filtering is required.

22. Why is Fluorescent Fiber Preferred in Microwave and RF Environments?

Di luar pengubah kuasa, this technology dominates in Microwave and RF applications (like MRI machines, industrial microwave heating, and plasma etching). Metal sensors (RTD/Thermocouples) would act as antennas in these fields, heating up and causing burns or sparking.

Fluorescent fiber sensors are “transparent” to microwaves. They do not absorb RF energy and do not perturb the electromagnetic field, allowing for precise temperature control in medical and semiconductor processes where no other sensor can survive.

23. Do Fluorescent Fiber Optic Sensors Require Periodic Recalibration?

Tidak. Kerana pengukuran adalah berdasarkan pemalar fizikal (ciri pereputan fosfor), penentukuran adalah intrinsik kepada bahan penderia.

Tidak seperti RTD yang hanyut akibat ketegangan mekanikal atau GaA yang hanyut akibat penuaan kristal, sistem pendarfluor yang dipasang hari ini akan membaca dalam spesifikasi ketepatannya (biasanya ±1°C) dekad dari sekarang. ini “Tetapkan dan Lupakan” keupayaan adalah penting untuk aset seperti transformer yang ditutup tertutup dikimpal dan tidak boleh diakses untuk penyelenggaraan.

24. How Do All-Dielectric Probes Ensure High Voltage Insulation Safety?

Keselamatan dalam voltan tinggi ditakrifkan oleh “Rayapan” dan “Pembersihan.” Penderia tidak boleh memendekkan laluan untuk elektrik melengkung ke tanah. Probe gentian pendarfluor diperbuat daripada bahan dengan kekuatan dielektrik yang sangat tinggi.

Mereka diuji dengan ketat terhadap dorongan kilat standard (ADALAH) dan kekerapan kuasa menahan ujian voltan. Because the materials are hydrophobic (repel oil and water) and non-tracking, they do not allow conductive paths to form along the cable surface, even under electrical stress.

25. How to Solve Sealing and Oil Resistance Issues in Oil-Immersed Transformers?

Installing fiber optics in an oil-filled tank requires penetrating the steel wall without creating leaks. This is achieved using specialized Tank Wall Feed-through Plates.

These plates use glass-to-metal seals or high-performance O-ring compression fittings to pass the light signal from the internal fiber to the external jumper cable. The internal fiber cables are sheathed in oil-compatible PTFE that does not degrade or outgas in hot transformer oil, ensuring the chemical integrity of the insulation fluid.

26. How to Protect Fiber Sensors During Cast Resin Dry-Type Transformer Production?

Dalam Dry-Type transformers, the sensor is often cast directly into the solid epoxy resin block. The curing process involves heat and mechanical shrinkage stress.

Fluorescent probes are designed with robust PEEK jacketing and stress-relief structures to withstand the pressure of the curing resin. Once cast, the sensor becomes a permanent part of the coil, measuring the core temperature continuously. Unlike PT100s which can suffer wire breakage during casting, the fiber remains flexible and durable.

27. Can the Lifespan of Fiber Optic Systems Match the Transformer’s Life?

A power transformer is expected to last 30 kepada 40 tahun. Monitoring equipment must match this longevity. Electronic components (capacitors/resistors) in a wireless sensor typically fail within 10 tahun.

Berkualiti tinggi Fluorescent Fiber Optic monitors are designed with industrial-grade components, tetapi yang lebih penting, the passive probe inside the dangerous high-voltage zone has no electronics to fail. The active electronics are kept safely in the control cabinet, where they can be easily serviced or upgraded without taking the transformer offline.

28. Can Legacy Transformers be Retrofitted with Fiber Optic Systems?

While installation is easiest during manufacturing, retrofitting is possible and increasingly common. For oil-immersed units, retrofits usually occur during mid-life refurbishment when the oil is drained. Sensors can be guided into the cooling ducts.

For dry-type transformers or switchgear, retrofitting is straightforward. Probes can be adhered to the surface of coils or bolted onto busbars using non-conductive clips. This upgrade transforms a “dumb” legacy asset into a smart, grid-ready component.

29. Perbandingan Komprehensif: Which is the Best Solution for High Voltage Monitoring?

The table below summarizes the battle between technologies.

30. Atas 10 Manufacturers and Global Case Studies

The market for fiber optic temperature monitoring is specialized. Below are the leading players, ranked by innovation and market focus.

Atas 10 Pengeluar Sensor Suhu Gentian Optik

Kajian Kes Global

• Middle East Grid Expansion: In a recent project in Arab Saudi, 500 units of power transformers were equipped with Fluorescent Fiber Optic sensors to withstand extreme ambient heat (50°C+) where WTI indicators failed to provide accurate winding data.
• European Offshore Wind: A major Jerman offshore wind farm utilized fiber optic sensors for their step-up transformers. The EMI from the converters was too high for PT100s, making optical the only viable choice.
• US Data Center: A hyperscale data center in Nevada retrofitted their dry-type transformers with direct winding monitoring to safely increase server load density without risking power failure.

Kesimpulan

The transition from electrical sensors (RTD/Termokopel) to optical sensors is not a trend; it is an engineering necessity for the modern grid. As voltages rise and assets are pushed closer to their limits, the risks of EMI and dielectric flashover make legacy sensors obsolete.

Teknologi Gentian Optik Pendarfluor stands alone as the superior choice. It offers the perfect combination of safety (semua dielektrik), kestabilan (hanyut sifar), dan ketepatan (direct measurement). Whether for a new UHV transformer or a critical medical MRI application, fluorescence provides the data integrity required for confident decision-making.

Penafian: The information provided in this article is for educational and technical reference purposes only. While we strive to ensure the accuracy of the technical comparisons and industry rankings, specific application requirements may vary. The rankings of manufacturers are based on market observation and technological focus as of the time of writing. Users should consult with professional engineers for specific high-voltage installation designs.
