The intelligent monitoring device for polycrystalline silicon dry-type transformers is wall mounted. This product has unique technical advantages in temperature measurement in special environments such as high voltage and strong electromagnetic interference.
Function introduction:
① The device has 24 channels of PT100 temperature measurement and 24 channels of 4-20mA analog output.
② Three fluorescent fiber optic thermometers.
③ Equipped with a 7-inch, 64K color true color display screen.
④ 1-way RS485 communication, MODBUSRTU protocol.
⑤ 18 way fan control, equipped with manual/automatic selection switch, can manually control the operation of the fan. 18 way fan with separate air switch protection.
⑥ 1-way door status, 2-way over temperature alarm, 2-way over temperature trip output dry contact, contact capacity 5A/220VDC.
Dimensions of intelligent monitoring device for polycrystalline silicon dry-type transformers：
| שיטת התקנה: | Wall mounted |
| Appearance dimensions: | 600mm x 800mm x 180mm (length x height x depth) |
| Installation dimensions: | 550mm x 750mm (hole spacing) |

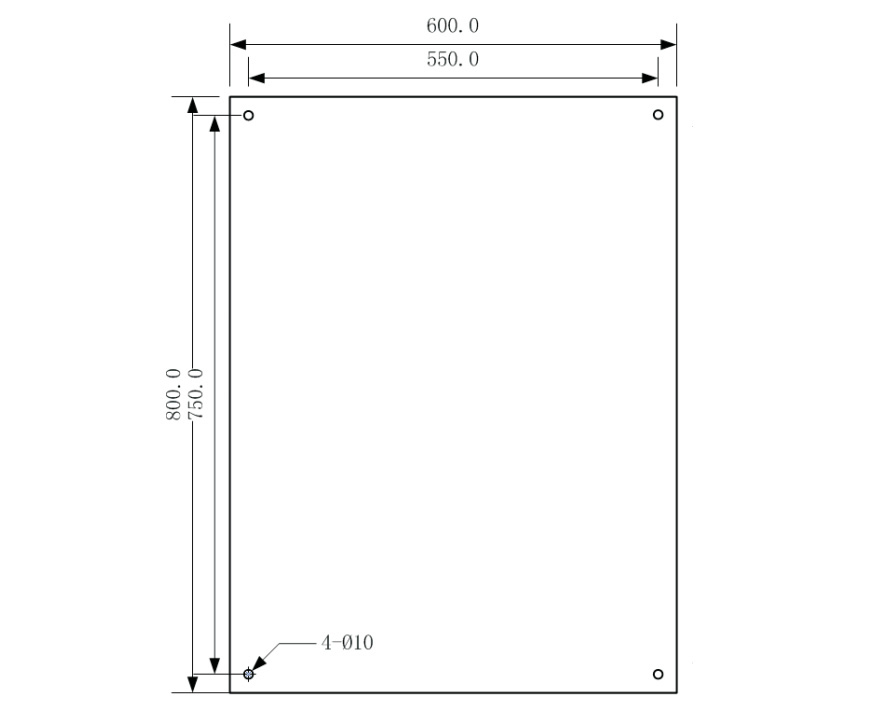

Installation dimension diagram of intelligent monitoring device for polycrystalline silicon dry-type transformer

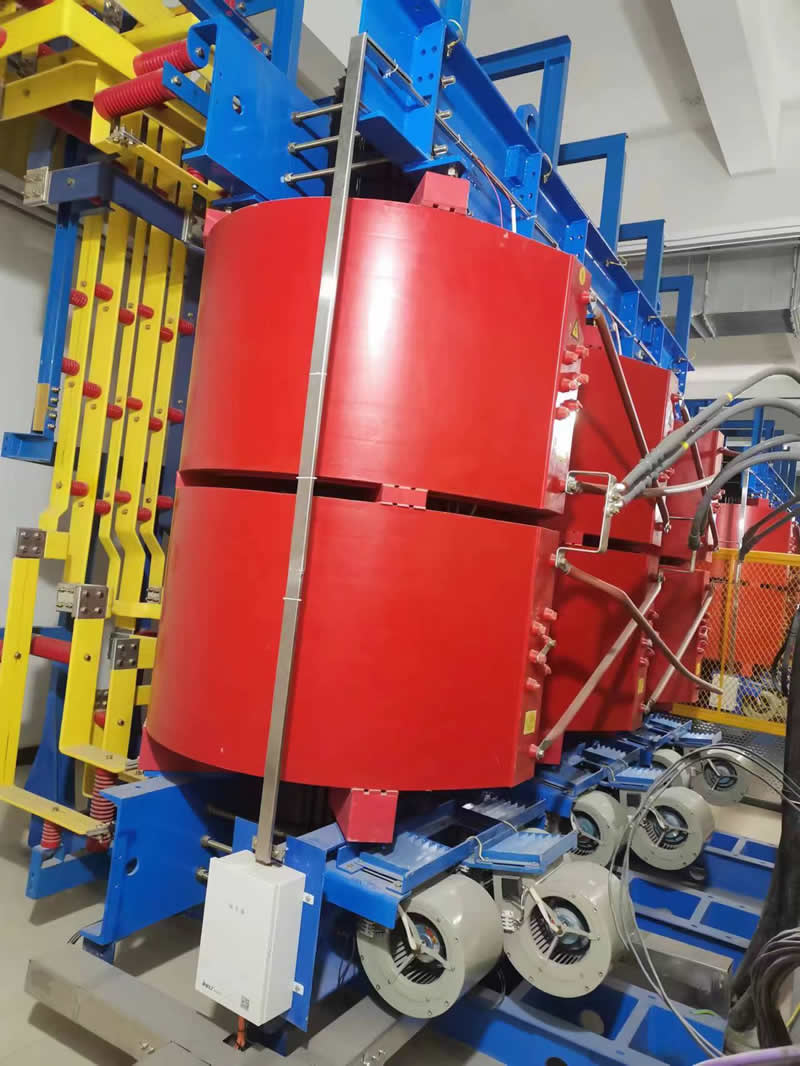

On site installation case of intelligent monitoring device for polycrystalline silicon dry-type transformer
  |
 |
